What are Aluminum PCBs?

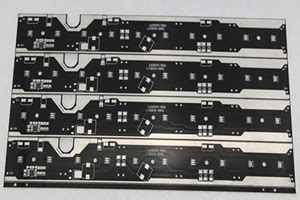

Aluminum PCBs, also known as metal Core PCBs (MCPCBs), are printed circuit boards that use aluminum as the base material instead of the traditional FR-4 substrate. The aluminum base provides excellent thermal conductivity, allowing for efficient heat dissipation from electronic components. This makes aluminum PCBs ideal for applications that generate significant amounts of heat, such as high-power LED lighting, automotive electronics, and power electronics.

Advantages of Aluminum PCBs

Excellent thermal conductivity
Improved reliability and longevity of electronic components
Lighter weight compared to traditional PCBs
Enhanced mechanical stability
Suitable for high-power applications

Request RF PCB Manufacturing & Assembly Quote Now

Structure of Aluminum PCBs

Aluminum PCBs consist of several layers:

Aluminum base layer
Dielectric layer
Copper circuit layer
Solder mask layer
Silkscreen layer

Aluminum Base Layer

The aluminum base layer serves as the foundation of the PCB and provides the primary thermal management properties. The thickness of the aluminum base can vary depending on the specific application and thermal requirements. Common thicknesses range from 0.5mm to 3mm.

Dielectric Layer

The dielectric layer is an electrically insulating material that separates the aluminum base from the copper circuit layer. It is typically made of a thermally conductive material, such as aluminum oxide or boron nitride, to facilitate heat transfer from the copper layer to the aluminum base.

Copper Circuit Layer

The copper circuit layer is where the electronic components are mounted and interconnected. The copper thickness can range from 0.5oz to 4oz, depending on the current carrying requirements of the application.

Solder Mask Layer

The solder mask layer is applied over the copper circuit layer to protect it from oxidation and prevent short circuits during soldering. It also provides insulation between adjacent copper traces.

Silkscreen Layer

The silkscreen layer is used to print component designators, logos, and other markings on the PCB surface. It helps in the assembly process and provides a professional appearance to the finished product.

Thermal Management

One of the primary reasons for using aluminum PCBs is their excellent thermal management properties. The high thermal conductivity of aluminum allows for efficient heat dissipation from electronic components, preventing overheating and improving overall system reliability.

Thermal Conductivity Comparison

Material	Thermal Conductivity (W/mK)
Aluminum	205 – 220
Copper	385 – 400
FR-4	0.3 – 0.4

As seen in the table above, aluminum has a much higher thermal conductivity compared to traditional FR-4 substrates, making it an excellent choice for applications that require efficient heat dissipation.

Thermal Design Considerations

When designing an aluminum PCB, several factors must be considered to optimize thermal performance:

Component placement: High-power components should be placed close to the aluminum base for better heat dissipation.
Dielectric layer thickness: A thinner dielectric layer improves heat transfer from the copper layer to the aluminum base.
Copper thickness: Thicker copper layers can help spread heat more evenly across the PCB surface.
Thermal vias: Adding thermal vias beneath high-power components can further enhance heat transfer to the aluminum base.

Applications of Aluminum PCBs

Aluminum PCBs are used in a wide range of applications where thermal management is critical:

High-power LED lighting
Automotive electronics
Power electronics
Motor drives
Telecommunications equipment
Aerospace and defense systems

High-Power LED Lighting

Aluminum PCBs are commonly used in high-power LED lighting applications due to their ability to efficiently dissipate heat generated by the LEDs. This helps to maintain optimal LED performance, color consistency, and longevity.

Automotive Electronics

In the automotive industry, aluminum PCBs are used in various electronic systems, such as engine control units (ECUs), power inverters, and LED headlights. The enhanced thermal management provided by aluminum PCBs ensures reliable operation in the harsh automotive environment.

Power Electronics

Power electronic devices, such as switch-mode power supplies (SMPS), motor drives, and inverters, generate significant amounts of heat during operation. Aluminum PCBs help to dissipate this heat efficiently, preventing component failure and improving overall system reliability.

Manufacturing Process

The manufacturing process for aluminum PCBs is similar to that of traditional PCBs, with a few additional steps to accommodate the aluminum base layer.

Aluminum preparation: The aluminum base is cut to size and cleaned to remove any surface contaminants.
Dielectric layer application: The dielectric layer is applied to the aluminum base using a lamination process.
Copper foil lamination: Copper foil is laminated onto the dielectric layer using heat and pressure.
Circuit pattern imaging: The desired circuit pattern is transferred onto the copper layer using photolithography.
Etching: The unwanted copper is removed using a chemical etching process, leaving behind the desired circuit pattern.
Solder mask application: The solder mask layer is applied to protect the copper circuitry and provide insulation.
Silkscreen printing: The silkscreen layer is printed onto the PCB surface for component designators and other markings.
Surface finish: A surface finish, such as ENIG (Electroless Nickel Immersion Gold) or OSP (Organic Solderability Preservative), is applied to protect the exposed copper and improve solderability.
Drilling and routing: Holes are drilled for through-hole components, and the PCB is routed to its final shape.
Quality control: The finished aluminum PCB undergoes thorough quality control checks to ensure it meets the required specifications.

Design Considerations

When designing an aluminum PCB, several factors must be considered to ensure optimal performance and manufacturability:

Thermal management: Proper component placement, dielectric layer thickness, and thermal via usage should be considered to maximize heat dissipation.
Mechanical constraints: The aluminum base can affect the PCB’s flexibility and drilling requirements, so these factors must be taken into account during the design phase.
Electrical isolation: Ensure adequate electrical isolation between the aluminum base and the copper circuitry to prevent short circuits.
Manufacturing capabilities: Consult with your PCB manufacturer to understand their specific capabilities and limitations when it comes to aluminum PCBs.

Choosing the Right Aluminum PCB Manufacturer

When selecting an aluminum PCB manufacturer, consider the following factors:

Experience: Choose a manufacturer with extensive experience in producing aluminum PCBs to ensure high-quality results.
Technical capabilities: Ensure that the manufacturer has the necessary equipment and expertise to meet your specific requirements.
Quality control: Look for a manufacturer with stringent quality control processes to guarantee consistent and reliable products.
Customer support: Select a manufacturer that offers excellent customer support and communication throughout the project.

RAYPCB is a leading manufacturer of high-quality aluminum PCBs, with over a decade of experience in the industry. Our state-of-the-art facilities, skilled technicians, and commitment to quality make us the ideal partner for your aluminum PCB needs.

Frequently Asked Questions (FAQ)

Q: What is the difference between aluminum PCBs and traditional PCBs?
A: Aluminum PCBs use an aluminum base material instead of the traditional FR-4 substrate, providing better thermal conductivity and heat dissipation properties.
Q: What are the main advantages of using aluminum PCBs?
A: The main advantages of aluminum PCBs include excellent thermal management, improved reliability, lighter weight, enhanced mechanical stability, and suitability for high-power applications.
Q: What industries commonly use aluminum PCBs?
A: Aluminum PCBs are commonly used in industries such as high-power LED lighting, automotive electronics, power electronics, telecommunications, aerospace, and defense.
Q: How does the manufacturing process for aluminum PCBs differ from traditional PCBs?
A: The manufacturing process for aluminum PCBs is similar to that of traditional PCBs, with additional steps to accommodate the aluminum base layer, such as aluminum preparation and dielectric layer application.
Q: What factors should I consider when choosing an aluminum PCB manufacturer?
A: When choosing an aluminum PCB manufacturer, consider factors such as experience, technical capabilities, quality control processes, and customer support to ensure the best results for your project.

In conclusion, aluminum PCBs offer a superior solution for applications that require efficient thermal management and high reliability. By understanding the structure, manufacturing process, and design considerations of aluminum PCBs, you can leverage their advantages to create innovative and reliable electronic products. RAYPCB, with its extensive experience and commitment to quality, is the perfect partner to help you realize your aluminum PCB projects.
