What Is Surface Mount Technology

Table of Contents

• Introduction to Surface Mount Technology
• Advantages of SMT over Through-Hole Technology
• SMT Components and Packaging
• The SMT Manufacturing Process
• Applications of Surface Mount Technology
• Future Trends in SMT
• Frequently Asked Questions (FAQ)
• Conclusion

Introduction to Surface Mount Technology

Surface Mount Technology (SMT) is a method of assembling electronic circuits in which components are mounted directly onto the surface of a printed circuit board (PCB). In contrast to through-hole technology (THT), where component leads are inserted into holes drilled in the PCB and soldered on the opposite side, SMT components are placed on the surface of the PCB and soldered in place using a solder paste.

The advent of SMT has brought about significant advancements in the electronics industry, enabling the production of smaller, lighter, and more densely packed electronic devices. This technology has become the dominant method of PCB Assembly, with applications ranging from consumer electronics to aerospace and defense systems.

Advantages of SMT over Through-Hole Technology

Surface Mount Technology offers several advantages over traditional through-hole technology, making it the preferred choice for modern electronics manufacturing:

1. Miniaturization: SMT components are smaller than their through-hole counterparts, allowing for more compact and lightweight electronic devices.
2. Higher component density: With SMT, more components can be placed on a single PCB, enabling the production of complex circuits with increased functionality.
3. Faster assembly: SMT allows for automated assembly processes, reducing the time and labor required for PCB assembly.
4. Improved reliability: SMT components have shorter leads and are more securely attached to the PCB, resulting in fewer mechanical and electrical failures.
5. Lower cost: The automated assembly process and reduced material usage in SMT lead to lower manufacturing costs compared to through-hole technology.

SMT Components and Packaging

Surface mount components are designed specifically for use in SMT Assembly. These components are typically smaller than through-hole components and have either flat, J-shaped, or gull-wing leads that allow for direct attachment to the surface of the PCB.

SMT components are available in various package types, each with its own characteristics and applications:

1. Small Outline Package (SOP): A rectangular package with leads extending from two sides, commonly used for Integrated Circuits (ICs).
2. Quad Flat Package (QFP): A square or rectangular package with leads extending from all four sides, used for ICs with higher pin counts.
3. Ball Grid Array (BGA): A package with an array of solder balls on the bottom, allowing for high-density interconnections.
4. Chip Scale Package (CSP): A package with dimensions close to those of the bare die, offering the smallest footprint among SMT packages.
5. Discrete components: Resistors, capacitors, and inductors are available in various SMT package sizes, such as 0201, 0402, 0603, and 0805.

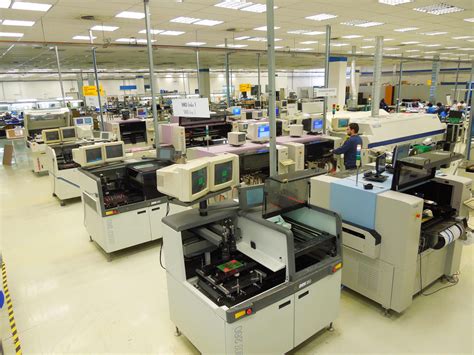

The SMT Manufacturing Process

The SMT manufacturing process consists of several key steps that ensure the accurate and reliable assembly of electronic circuits:

1. Solder paste printing: A stainless steel stencil is used to apply solder paste onto the PCB pads where the components will be placed.
2. Component placement: An automated pick-and-place machine precisely positions the SMT components onto the solder paste-coated pads.
3. Reflow soldering: The PCB is passed through a reflow oven, where the solder paste melts, forming a permanent electrical and mechanical connection between the components and the PCB.
4. Inspection and testing: Automated Optical Inspection (AOI) systems and in-circuit testing (ICT) are used to verify the proper assembly and functionality of the circuit.

Applications of Surface Mount Technology

Surface Mount Technology finds applications across a wide range of industries, owing to its numerous advantages:

1. Consumer electronics: Smartphones, tablets, laptops, and wearable devices heavily rely on SMT for their compact and lightweight designs.
2. Automotive electronics: SMT is used in the production of electronic control units (ECUs), sensors, and infotainment systems for vehicles.
3. Medical devices: Implantable devices, diagnostic equipment, and monitoring systems employ SMT for their miniaturized and reliable electronic assemblies.
4. Aerospace and defense: SMT is crucial for the production of avionics, communication systems, and defense electronics that require high reliability and resistance to harsh environments.
5. Industrial automation: SMT is used in the manufacturing of sensors, controllers, and communication modules for industrial automation systems.

Future Trends in SMT

As the demand for smaller, faster, and more complex electronic devices continues to grow, Surface Mount Technology is expected to evolve to keep pace with these requirements:

1. Miniaturization: The development of even smaller SMT component packages, such as 01005 and 0201 metric, will enable further miniaturization of electronic devices.
2. Advanced packaging technologies: The adoption of advanced packaging technologies, such as 3D integrated circuits (3D ICs) and system-in-package (SiP), will allow for higher levels of integration and functionality.
3. Flexible and stretchable electronics: The integration of SMT with flexible and stretchable substrates will enable the production of wearable and implantable electronic devices.
4. Increased automation: Advancements in automated assembly equipment, such as high-speed pick-and-place machines and 3D solder paste inspection systems, will further optimize the SMT manufacturing process.

Frequently Asked Questions (FAQ)

1. What is the difference between Surface Mount Technology (SMT) and Through-Hole Technology (THT)?

2. SMT components are mounted directly onto the surface of the PCB, while THT components have leads that are inserted into holes drilled in the PCB and soldered on the opposite side.

3. What are the advantages of using SMT over THT?

4. SMT allows for smaller component sizes, higher component density, faster assembly, improved reliability, and lower manufacturing costs compared to THT.

5. What are some common SMT component package types?

6. Common SMT component package types include Small Outline Package (SOP), Quad Flat Package (QFP), Ball Grid Array (BGA), and Chip Scale Package (CSP).

7. What are the key steps in the SMT manufacturing process?

8. The key steps in the SMT manufacturing process are solder paste printing, component placement, reflow soldering, and inspection and testing.

9. What industries commonly use Surface Mount Technology?

10. SMT is widely used in consumer electronics, automotive electronics, medical devices, aerospace and defense, and industrial automation.

Conclusion

Surface Mount Technology has revolutionized the electronics manufacturing industry, enabling the production of smaller, faster, and more reliable electronic devices. By allowing for higher component density, faster assembly, and lower manufacturing costs, SMT has become the dominant method of PCB assembly across various industries. As technology continues to advance, SMT is expected to evolve, driving further miniaturization and integration of electronic devices. Understanding the fundamentals of SMT, its advantages, and its applications is crucial for professionals in the electronics industry and those seeking to stay informed about the latest trends in Electronic Manufacturing.
