How to Clean PCBA in the Safest and Most Effective Ways?

RF & Microwave - 21 April 2024 - 9:35 am

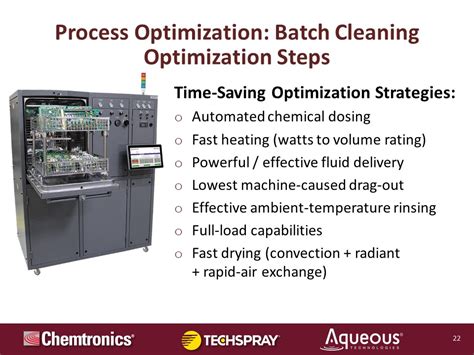

Introduction to PCBA+Cleaning”>PCBA Cleaning

Printed Circuit Board Assembly (PCBA) cleaning is a critical process in the manufacturing and maintenance of electronic devices. Proper cleaning ensures the reliability, longevity, and performance of the PCBA by removing contaminants such as flux residues, dust, and other debris. In this comprehensive guide, we will explore the various methods, techniques, and best practices for cleaning PCBA in the safest and most effective ways.

Request RF PCB manufacturing & Assembly Quote Now

Why is PCBA Cleaning Important?

PCBA cleaning is essential for several reasons:

Removes flux residues and other contaminants that can cause corrosion and short circuits
Improves the overall appearance and aesthetics of the PCBA
Enhances the reliability and longevity of the electronic device
Ensures proper functioning and performance of the PCBA
Helps in maintaining industry standards and quality control

Common Contaminants Found on PCBA

Before diving into the cleaning methods, it’s essential to understand the types of contaminants that can accumulate on a PCBA:

Flux residues: Leftover from the soldering process, flux residues can cause corrosion and short circuits if not properly removed.
Dust and debris: Accumulation of dust and debris can lead to overheating and poor performance of the PCBA.
Oils and greases: Fingerprints, lubricants, and other oils can attract dust and debris, leading to contamination.
Ionic contamination: Salts and other ionic substances can cause corrosion and electrical leakage if not removed.

PCBA Cleaning Methods

There are several methods for cleaning PCBA, each with its advantages and disadvantages. The choice of method depends on factors such as the type of contaminants, the size and complexity of the PCBA, and the available resources.

1. Manual Cleaning

Manual cleaning involves using brushes, swabs, and solvents to remove contaminants from the PCBA physically. This method is suitable for small-scale cleaning and hard-to-reach areas.

Advantages:
– Cost-effective for small-scale cleaning
– Allows for targeted cleaning of specific areas
– Suitable for delicate components

Disadvantages:
– Time-consuming and labor-intensive
– Inconsistent results due to human error
– Risk of damage to components if not done carefully

2. Ultrasonic Cleaning

Ultrasonic cleaning uses high-frequency sound waves to create microscopic bubbles in a cleaning solution. These bubbles implode, creating a powerful cleaning action that removes contaminants from the PCBA.

Advantages:
– Effective for removing stubborn contaminants
– Suitable for complex PCBA with hard-to-reach areas
– Faster than manual cleaning

Disadvantages:
– Requires specialized equipment and trained operators
– Risk of damage to delicate components due to high-frequency vibrations
– May require post-cleaning rinsing and drying

3. Spray Cleaning

Spray cleaning involves using pressurized cleaning solutions to remove contaminants from the PCBA. This method is suitable for large-scale cleaning and can be automated for increased efficiency.

Advantages:
– Fast and efficient for large-scale cleaning
– Can be automated for consistency and repeatability
– Suitable for removing loose contaminants

Disadvantages:
– Requires specialized equipment and facilities
– Risk of over-spraying and damaging components
– May require post-cleaning rinsing and drying

4. Vapor Degreasing

Vapor degreasing uses heated solvents to create a vapor that condenses on the PCBA, dissolving and removing contaminants. This method is highly effective for removing oils, greases, and flux residues.

Advantages:
– Highly effective for removing stubborn contaminants
– Leaves no residue on the PCBA
– Can be automated for consistency and repeatability

Disadvantages:
– Requires specialized equipment and facilities
– Uses hazardous solvents that require proper handling and disposal
– May not be suitable for temperature-sensitive components

Cleaning Solvents and Solutions

The choice of cleaning solvents and solutions is crucial for effective PCBA cleaning. The ideal solvent should:

Effectively dissolve and remove contaminants
Be compatible with the materials used in the PCBA
Have low toxicity and environmental impact
Be easy to handle and dispose of safely

Some common cleaning solvents used in PCBA cleaning include:

Solvent	Advantages	Disadvantages
Isopropyl Alcohol (IPA)	– Effective for removing flux residues – Low toxicity – Readily available	– Flammable – May not be suitable for some plastics
Deionized (DI) Water	– Non-toxic and environmentally friendly – Effective for removing ionic contamination	– May not be effective for removing oils and greases – Requires thorough drying to prevent corrosion
Terpenes	– Effective for removing oils and greases – Biodegradable and environmentally friendly	– May leave residue on the PCBA – Some terpenes can be toxic
Fluorinated Solvents	– Highly effective for removing stubborn contaminants – Non-flammable and low toxicity	– Expensive – Requires specialized handling and disposal

Best Practices for PCBA Cleaning

To ensure the safest and most effective PCBA cleaning, follow these best practices:

Use the appropriate cleaning method and solvent for the type of contaminants and PCBA materials.
Follow the manufacturer’s guidelines for handling and disposing of cleaning solvents.
Wear appropriate personal protective equipment (PPE) when handling cleaning solvents.
Ensure proper ventilation in the cleaning area to minimize exposure to fumes.
Regularly inspect and maintain cleaning equipment to ensure optimal performance.
Perform post-cleaning inspections to verify the cleanliness and functionality of the PCBA.
Document the cleaning process and results for quality control and traceability.

Case Studies

Case Study 1: Automotive Electronics Manufacturer

An automotive electronics manufacturer was experiencing high failure rates due to flux residues on their PCBA. By implementing an automated spray cleaning system using a terpene-based solvent, they were able to reduce the failure rate by 85% and improve overall product quality.

Case Study 2: Medical Device Company

A medical device company needed to ensure the highest level of cleanliness for their PCBA to meet stringent industry standards. By using a combination of ultrasonic cleaning and vapor degreasing with a fluorinated solvent, they were able to consistently achieve the required cleanliness levels and pass all regulatory inspections.

Frequently Asked Questions (FAQ)

Q: How often should I clean my PCBA?
A: The frequency of cleaning depends on factors such as the operating environment, the type of contaminants, and the criticality of the application. As a general rule, PCBA should be cleaned whenever there is visible contamination or a degradation in performance.
Q: Can I use household cleaners to clean my PCBA?
A: No, household cleaners are not recommended for PCBA cleaning as they may contain harsh chemicals that can damage the components or leave residues. Always use cleaning solvents and solutions specifically designed for PCBA cleaning.
Q: How do I know if my PCBA is clean enough?
A: Visual inspection is the first step in determining the cleanliness of a PCBA. Look for any visible contaminants, residues, or discoloration. Additionally, various testing methods, such as ionic contamination testing and surface insulation resistance (SIR) testing, can be used to quantify the cleanliness of a PCBA.
Q: Can I clean my PCBA without removing it from the device?
A: In some cases, it may be possible to clean a PCBA without removing it from the device, such as using manual cleaning methods or specialized cleaning equipment. However, it’s generally recommended to remove the PCBA from the device for thorough cleaning and to prevent damage to other components.
Q: How do I ensure the safety of my personnel during PCBA cleaning?
A: Ensure that all personnel involved in PCBA cleaning are properly trained in the handling and disposal of cleaning solvents. Provide appropriate personal protective equipment (PPE) such as gloves, safety glasses, and respirators. Maintain proper ventilation in the cleaning area and follow all relevant safety regulations and guidelines.

Conclusion

Cleaning PCBA is a critical process in ensuring the reliability, longevity, and performance of electronic devices. By understanding the common contaminants, cleaning methods, and best practices, manufacturers and maintenance professionals can effectively clean PCBA in the safest and most efficient ways. Regular cleaning and proper maintenance of PCBA not only improves the overall quality of the product but also helps in meeting industry standards and regulatory requirements.
