What is a CDI Ignition System?
A Capacitor Discharge Ignition (CDI) system is an electronic ignition system that uses capacitors to store electrical energy which is then rapidly discharged to fire the spark plugs in an internal combustion engine. CDI systems offer several advantages over traditional inductive ignition systems, making them a popular choice for many ignition applications.
Key Advantages of CDI Ignition Systems
- High voltage output for strong, reliable spark
- Fast rise times for complete combustion
- Lightweight and compact design
- No moving parts for durability and low maintenance
- Adjustable spark timing for optimal engine performance

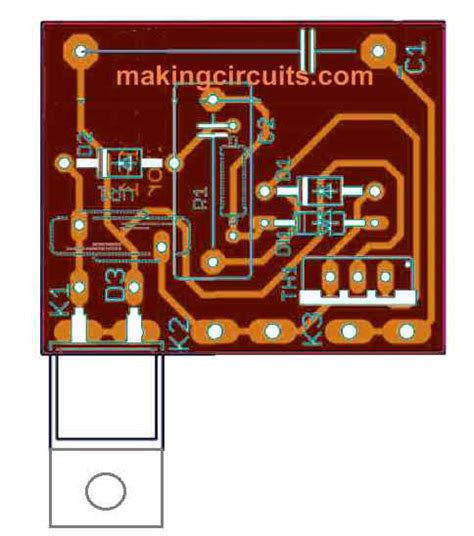

How Does a CDI Ignition System Work?
A CDI ignition system consists of several key components that work together to generate the high-voltage spark needed to ignite the air/fuel mixture in an engine’s cylinders:
Main CDI System Components
| Component | Description |
|---|---|
| DC Power Source | Battery or magneto provides DC power to charge capacitor |
| Charging Circuit | Transforms and rectifies AC into DC to charge capacitor |
| Storage Capacitor | Stores DC energy from charging circuit |
| Triggering Circuit | SCR or thyristor switches capacitor discharge to ignition coil |
| Ignition Coil | Transformer steps up capacitor voltage to fire spark plugs |
The DC power source, either a battery or magneto, provides power to the charging circuit. The charging circuit transforms and rectifies the alternating current into direct current to charge up the storage capacitor to around 400-600 volts.
The triggering circuit, consisting of an SCR (silicon controlled rectifier) or thyristor, acts as a switch to allow the capacitor to rapidly discharge its stored energy to the ignition coil when a trigger signal is received (based on the engine timing).
The ignition coil acts as a pulse transformer to step up the capacitor voltage from hundreds of volts to tens of thousands of volts (30-40kV typically). This high voltage pulse is then delivered down the spark plug wires to fire the spark plugs and ignite the air/fuel mixture in the engine cylinders.
CDI System Operation
- Power source charges capacitor to 400-600V
- Triggering circuit receives signal to fire spark plug
- Triggering circuit switches on and allows capacitor to discharge to coil
- Coil steps up voltage and sends 30-40kV to spark plug
- Spark plug fires, igniting air/fuel mixture in cylinder
- Capacitor recharges and cycle repeats for each ignition event
By storing energy in a capacitor and discharging it rapidly, CDI systems are able to generate sparks with very high voltage and fast rise times compared to inductive ignition systems. This provides strong, reliable ignition of the fuel mixture for optimal combustion.
Benefits of CDI Ignition vs Inductive Ignition
Compared to traditional inductive (ketterer) ignition systems, CDI ignitions provide several key performance benefits:
Higher Voltage Output
CDI systems can generate sparks with much higher voltages than inductive systems – up to 40kV vs 20-25kV typically. This higher voltage allows CDI systems to fire fouled or worn spark plugs more effectively and reliably ignite fuel mixtures that are harder to burn.
Faster Spark Rise Times
The fast discharge of a capacitor allows CDI sparks to reach peak voltage much more quickly than inductively generated sparks. Faster rise times mean the spark reaches its full strength earlier in the ignition event for more reliable ignition and complete combustion.
| Ignition Type | Typical Spark Voltages | Typical Rise Times |
|---|---|---|
| CDI | 30-40 kV | 1-5 μs |
| Inductive | 20-25 kV | 50-100 μs |
Lighter Weight and More Compact
By eliminating the heavy iron core transformer used in inductive systems, CDI ignitions can be made much lighter and more compact overall. This weight and space savings is especially beneficial in powersports applications like motorcycles, ATVs, and snowmobiles.
No Moving Parts
CDI systems are fully electronic with no moving parts like mechanical points that can wear out over time. This allows them to operate more reliably with less required maintenance than inductive systems.
CDI Ignition Timing Control
Another advantage of CDI ignition systems is the ability to precisely control the ignition timing. The triggering signal to the SCR or thyristor can be adjusted to fire the spark plugs earlier or later in the piston stroke to optimize combustion.
Adjustable Timing Parameters
- Static timing – Overall base ignition timing
- Dynamic timing – Timing advance curve based on RPM
- Individual cylinder timing – Timing offsets between cylinders
By adjusting the timing parameters, the ignition timing can be optimized for the specific engine design and operating conditions for maximum power, efficiency, and engine life. Many CDI systems allow these timing parameters to be easily adjusted through electronic control modules.
Timing Curves
CDI ignitions typically use a timing map or curve to determine how much the ignition timing is advanced based on engine RPM. At low RPMs, less timing advance is needed, while more advance is desired at higher RPMs for optimal combustion and power output.
Example CDI Timing Advance Curve
| Engine RPM | Timing Advance |
|---|---|
| 1000 | 0° |
| 2000 | 5° |
| 4000 | 15° |
| 6000 | 25° |
| 8000 | 35° |
The specific shape of the timing curve can be tuned to match the engine design, combustion chamber geometry, fuel type, compression ratio, and other factors to extract the maximum safe performance.
Applications for CDI Ignition Systems
CDI ignition systems are commonly used in a variety of spark-ignited engine applications, especially where light weight, compact size, high performance, and reliability are important. Some common applications include:
Powersports
- Motorcycles
- Scooters
- ATVs
- Snowmobiles
- Personal watercraft
Outdoor Power Equipment
- Lawnmowers
- String trimmers
- Chainsaws
- Leaf blowers
Portable Generators
- Inverter generators
- Standby home generators
Marine
- Outboard motors
- Inboard engines
- Sterndrive engines
Other Applications
- Ultralight aircraft
- Go-karts and mini-bikes
- RC vehicles
Troubleshooting CDI Ignition Systems
While CDI ignition systems are generally very reliable, there are a few common issues that may be encountered:
No Spark
- Check power supply voltage to CDI unit
- Check grounding of CDI unit
- Inspect wiring and connections for damage or corrosion
- Verify triggering signal from ignition pickup or ECU
- Test CDI unit output with ignition coil and spark tester
Weak or Intermittent Spark
- Inspect spark plugs for fouling, damage, or improper gap
- Check resistance of ignition coil primary and secondary windings
- Verify charging system is providing adequate voltage
- Test capacitor for proper charging and discharging
Timing Issues
- Verify static timing is set correctly
- Check that RPM signal to CDI unit is clean and accurate
- Inspect timing advance mechanism or curve settings
- Verify that triggering signal is correctly synced to engine position
By systematically checking the CDI system components, wiring, and settings, most issues can be quickly diagnosed and resolved to restore proper ignition performance. Consult the manufacturer’s troubleshooting guide or manual for model-specific diagnostics.
CDI Ignition System FAQ
What is the difference between CDI and TCI ignition?
While both CDI (Capacitive Discharge Ignition) and TCI (Transistor Controlled Ignition) are electronic ignition systems, the main difference is in how the ignition coil is switched. CDI uses capacitors to store and discharge energy to the coil, while TCI uses transistors to switch the coil current on and off. CDI generally provides higher voltage and faster sparks.
What is a multiple spark discharge (MSD) ignition?
MSD is a specific brand and type of high-performance CDI ignition that provides a rapid series of sparks during each ignition event rather than a single spark. This provides more reliable ignition of the fuel mixture under difficult conditions. MSD systems are popular for racing and other high-performance applications.
How long does a CDI ignition box last?
When properly installed and maintained, a CDI ignition unit can last for many thousands of hours of operation, often exceeding the life of the engine itself. The lack of moving parts and fully solid-state design of CDI systems allows them to operate reliably for extended periods without wearing out.
Can a CDI ignition be used on older engines with breaker points?
In most cases, yes. Many aftermarket CDI systems are designed to be a drop-in replacement for traditional breaker points ignitions. The CDI will still use the original mechanical advance mechanism built into the engine, but will eliminate the maintenance associated with the points and condenser. Consult the CDI manufacturer for application-specific installation instructions.
What are the signs of a failing CDI ignition?
Symptoms of a possible problem with a CDI ignition include hard starting, misfires, rough running, lack of power, backfiring, or no spark. Of course, these symptoms can also be caused by other ignition system components, fuel system, or mechanical engine issues, so proper diagnosis is important. Testing of the CDI unit and connected components will typically uncover any CDI-specific faults.
Conclusion
CDI ignition systems offer many significant benefits over traditional inductive ignitions, including higher voltage output, faster spark rise times, lightweight and compact packaging, and adjustable timing control. These advantages make CDI a great choice for ignition applications prioritizing performance, efficiency, and reliability.
While generally very robust, proper care and maintenance of CDI systems is still important for a long service life. Following the manufacturer’s installation and troubleshooting guidelines will ensure the CDI ignition provides optimum performance in any application.
