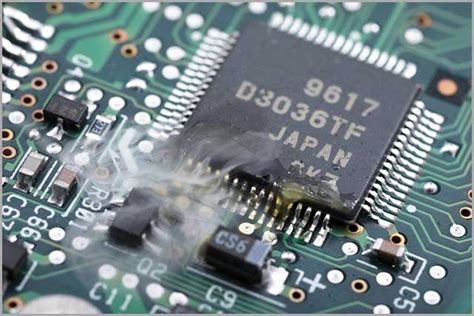

What is PCB Soldering?
PCB soldering is the process of joining electronic components to a PCB using molten solder. The solder, which is typically a mixture of tin and lead, is heated to its melting point and then applied to the joints between the components and the PCB. As the solder cools and solidifies, it creates a strong electrical and mechanical connection between the components and the PCB.
Types of PCB Soldering
There are two main types of PCB soldering: through-hole soldering and surface mount soldering.
Through-Hole Soldering
Through-hole soldering is the traditional method of PCB soldering. It involves inserting the leads of the electronic components through holes drilled in the PCB and then soldering them in place on the opposite side of the board. This method is ideal for larger components and provides a strong mechanical connection.
Surface Mount Soldering
Surface mount soldering, also known as SMT soldering, is a more modern method of PCB soldering. It involves soldering the electronic components directly onto the surface of the PCB without the need for drilled holes. This method is ideal for smaller components and allows for higher component density on the PCB.
Tools and Equipment for PCB Soldering
To perform PCB soldering, you will need the following tools and equipment:
- Soldering iron
- Solder wire
- Flux
- Solder wick
- Tweezers
- Wire cutters
- Magnifying glass
- Fume extractor
Soldering Iron
A soldering iron is the most essential tool for PCB soldering. It consists of a heated metal tip that melts the solder and allows it to flow onto the joint. Soldering irons come in various wattages and tip shapes to suit different soldering needs.
Types of Soldering Iron Tips
| Tip Shape | Description |
|---|---|
| Conical | A pointed tip ideal for precise soldering |
| Chisel | A flat tip ideal for soldering larger components |
| Bevel | An angled tip ideal for reaching tight spaces |
Solder Wire
Solder wire is a thin wire made of a mixture of tin and lead that melts when heated by the soldering iron. It is available in various thicknesses and compositions to suit different soldering needs.
Solder Wire Composition
| Composition | Description |
|---|---|
| 63/37 | A mixture of 63% tin and 37% lead, ideal for general-purpose soldering |
| 60/40 | A mixture of 60% tin and 40% lead, ideal for high-reliability soldering |
| Lead-free | A mixture of tin, silver, and copper, ideal for RoHS-compliant soldering |
Flux
Flux is a chemical compound that helps to remove oxides and other contaminants from the surface of the joint, allowing the solder to flow more easily. It is available in various forms, including liquid, paste, and pen.
PCB Soldering Techniques
There are several techniques used in PCB soldering, each with its own advantages and disadvantages.
Hand Soldering
Hand soldering is the most basic and commonly used technique for PCB soldering. It involves using a soldering iron to manually apply the solder to the joint. This technique is ideal for small-scale production and repairs.
Advantages of Hand Soldering
- Low cost
- Flexibility
- Ideal for small-scale production and repairs
Disadvantages of Hand Soldering
- Time-consuming
- Requires skilled operators
- Inconsistent results
Wave Soldering
Wave soldering is an automated technique used for soldering through-hole components. It involves passing the PCB over a molten solder wave, which flows up through the holes and solders the components in place.
Advantages of Wave Soldering
- High-speed production
- Consistent results
- Ideal for large-scale production
Disadvantages of Wave Soldering
- High setup cost
- Limited flexibility
- Not suitable for surface mount components
Reflow Soldering
Reflow soldering is an automated technique used for soldering surface mount components. It involves applying solder paste to the PCB, placing the components, and then heating the entire assembly in a reflow oven until the solder melts and solidifies.
Advantages of Reflow Soldering
- High-speed production
- Consistent results
- Ideal for large-scale production of surface mount components
Disadvantages of Reflow Soldering
- High setup cost
- Limited flexibility
- Not suitable for through-hole components
PCB Soldering Defects and Troubleshooting
Despite the best efforts, PCB soldering defects can occur. Here are some common defects and how to troubleshoot them:
Bridging
Bridging occurs when solder accidentally connects two adjacent pins or pads. To fix bridging, use solder wick to remove the excess solder.
Cold Joint
A cold joint occurs when the solder fails to flow properly, resulting in a dull and grainy appearance. To fix a cold joint, reheat the joint and apply fresh solder.
Insufficient Solder
Insufficient solder occurs when not enough solder is applied to the joint, resulting in a weak connection. To fix insufficient solder, apply more solder to the joint.
Overheating
Overheating occurs when the soldering iron is applied to the joint for too long, causing damage to the components or PCB. To prevent overheating, use the appropriate temperature and duration for the soldering iron.
FAQ
-
What is the difference between lead-based and lead-free solder?
Lead-based solder contains a mixture of tin and lead, while lead-free solder contains a mixture of tin, silver, and copper. Lead-free solder is required for RoHS-compliant products. -
Can I mix different types of solder?
It is not recommended to mix different types of solder as they have different melting points and can result in poor joint quality. -
How often should I replace my soldering iron tip?
Soldering iron tips should be replaced when they become worn or damaged, typically after several months of regular use. -
What is the ideal temperature for PCB soldering?
The ideal temperature for PCB soldering depends on the type of solder being used. For lead-based solder, a temperature of 350-400°C is recommended, while for lead-free solder, a temperature of 400-450°C is recommended. -
Can I reuse solder wick?
Solder wick can be reused until it becomes saturated with solder and loses its effectiveness. It is recommended to use fresh solder wick for each use to ensure the best results.
Conclusion
PCB soldering is a critical process in the manufacturing of electronic devices. Proper soldering ensures the reliability and functionality of the device. By understanding the different types of soldering, tools and equipment, techniques, and troubleshooting methods, you can ensure high-quality PCB soldering for your projects.
