Metallization: A Detailed Overview of the Metallization Process

What is Metallization?

Metallization is a process where a metal coating is applied to the surface of an object, usually for functional or decorative purposes. The metal coating can provide various benefits such as improved conductivity, enhanced appearance, increased durability, or protection against corrosion. Metallization is used in a wide range of industries including electronics, automotive, aerospace, and manufacturing.

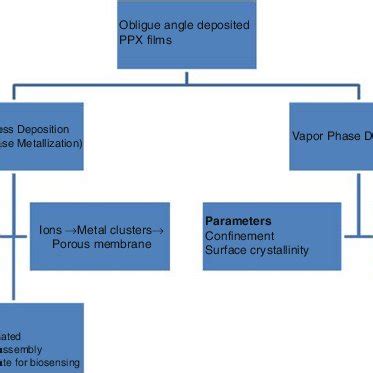

Methods of Metallization

There are several methods used for metallization, each with its own advantages and applications. The most common metallization methods include:

Physical Vapor Deposition (PVD)

PVD is a vacuum deposition method where a solid metal is vaporized and then condensed onto the surface of the substrate material. The two main types of PVD are evaporation and sputtering.

Evaporation

In evaporation, the source material is heated until it vaporizes and then condenses on the substrate. Evaporation provides high purity coatings but may have less adhesion compared to other methods. It is often used for decorative finishes.

Sputtering

Sputtering involves ejecting material from a “target” metal source onto a substrate using plasma. An inert gas is ionized and accelerated towards the negatively charged target, causing atoms to be knocked loose and deposited on the substrate. Sputtering can provide better adhesion and is used for conductive coatings in electronics.

Chemical Vapor Deposition (CVD)

CVD is a process where a substrate is exposed to volatile precursors that react or decompose on the substrate surface to produce the desired metal coating. CVD can coat complex shapes and produce very pure, uniform films. However, it requires high temperatures and expensive equipment. CVD is used to apply thin films in semiconductor fabrication.

Electroplating

Electroplating uses an electric current to reduce dissolved metal ions onto the surface of a conductive substrate. The substrate is submerged in an electrolyte solution containing the metal salt. When current is applied, metal ions are reduced at the cathode substrate, forming a coating. Electroplating is widely used to apply functional and decorative coatings to metal parts.

Electroless Plating

Electroless plating, also known as autocatalytic plating, is a chemical reduction process that deposits metal without an external electrical current. The substrate is submerged in an aqueous solution containing a metal salt and a reducing agent. The reducing agent provides the electrons needed to convert metal ions into metal deposited on the surface. Electroless plating can coat non-conductive materials and provide an even coating thickness. It is often used as a pre-treatment before electroplating.

Metallization Process Steps

The exact steps in the metallization process vary depending on the specific method used. However, most metallization processes follow these general steps:

1. Cleaning: The substrate surface is thoroughly cleaned to remove any dirt, oils, or oxides that could interfere with coating adhesion. Cleaning may involve solvents, alkaline cleaners, or acid etching.

2. Surface Preparation: The surface may be roughened or chemically modified to improve coating adhesion. Examples include mechanical abrasion, plasma treatment, or application of an adhesion promoter.

3. Masking (optional): Areas of the substrate that should not be coated are masked off.

4. Metallization: The actual metallization process is performed using one of the methods described above (PVD, CVD, electroplating, etc.)

5. Post-Treatment (optional): After metallization, the coated surface may undergo additional treatments such as heat treating, passivation, or application of sealants/topcoats.

6. Inspection: The metallized surface is inspected for coating thickness, adhesion, appearance, and performance properties. Inspection methods can include visual examination, thickness gauges, adhesion tests, or conductivity measurements.

Factors Affecting Metallization Quality

Several key factors influence the quality and performance of metallized coatings:

Substrate Surface

The condition of the substrate surface significantly impacts coating adhesion and uniformity. Surface roughness, cleanliness, and chemical compatibility with the coating material are important considerations. Proper surface preparation is critical for successful metallization.

Metallization Parameters

The specific process parameters used during metallization affect the resulting coating properties. For example, in PVD the deposition rate, vacuum level, substrate temperature, and gas composition influence the microstructure and adhesion of the coating. Careful optimization and control of process parameters is necessary to achieve the desired coating quality.

Coating Material

The composition and properties of the metal being deposited determine the final characteristics of the metallized surface. Factors such as metal purity, alloying elements, and deposition conditions affect grain structure, hardness, and corrosion resistance. Material selection depends on the end use requirements for the metallized product.

Post-Treatment

Proper post-treatment can significantly enhance the performance of metallized coatings. Heat treatment, such as annealing or tempering, can modify the microstructure and relieve residual stresses in the coating. Passivation or application of conversion coatings provides additional corrosion protection. Sealing or top coating can further enhance corrosion resistance, appearance, and durability.

Applications of Metallized Coatings

Metallized coatings are used in numerous industries for a variety of applications, including:

Industry	Applications
Electronics	Printed circuit boards, integrated circuits, EMI shielding, connectors
Automotive	Decorative trim, corrosion protection, wear resistant surfaces, reflectors
Aerospace	Thermal barriers, radiation shielding, anti-icing, erosion resistance
Manufacturing	Tooling, molds, dies, machine components, anti-galling surfaces
Medical	Implants, instruments, EMI shielding for devices
Packaging	Food containers, moisture barriers, decorative finishes
Energy	Solar panels, fuel cells, batteries, hydrogen storage

Some specific examples of metallized products include:

• Aluminum metallized polyester films used for food packaging, insulation, and decorative applications
• Electroplated zinc coatings on steel for corrosion protection in automotive and construction applications
• Sputtered titanium nitride coatings on machine tools for increased wear resistance
• Electroless nickel-phosphorus alloy coatings on plastics for EMI shielding and conductivity
• PVD alumina coatings on turbine blades for thermal barrier protection

Benefits of Metallization

Metallization offers numerous benefits over uncoated surfaces, including:

1. Corrosion Resistance: Metallized coatings can significantly improve corrosion resistance by providing a barrier against moisture and corrosive environments. This extends the service life of parts and reduces maintenance requirements.

2. Wear Resistance: Hard metallized coatings, such as chromium or titanium nitride, provide excellent wear and abrasion resistance. This improves durability and reduces friction in moving components.

3. Conductivity: Metallization is used to apply conductive coatings for electrical and thermal conductivity. This is crucial for applications such as printed circuit boards, EMI shielding, and heat exchangers.

4. Decorative Enhancement: Bright, lustrous metal finishes are applied for decorative purposes on products such as automotive trim, furniture, and consumer goods. Metallization allows customization of color, texture, and reflectivity.

5. Substrate Protection: Metallized coatings can shield underlying substrates from UV radiation, chemicals, or extreme temperatures. This allows the use of lower cost substrate materials in harsh operating environments.

6. Improved Solderability: Metallization is used to apply solderable surface finishes to printed circuit boards and electrical components. Coatings such as tin-lead, nickel-gold, or palladium provide excellent solderability and reliability.

7. Enhanced Optical Properties: Metallization can be used to apply reflective or anti-reflective coatings for optical applications. Examples include mirror coatings, solar reflectors, and anti-glare surfaces.

Challenges and Limitations

While metallization provides numerous benefits, there are also some challenges and limitations to consider:

1. Cost: Metallization processes can be capital intensive, requiring expensive vacuum equipment, power supplies, and instrumentation. High purity metal deposition materials also add to the cost. Economic justification is based on the value added by the metallized coating.

2. Substrate Limitations: Some substrate materials are not compatible with certain metallization processes due to temperature sensitivity, chemical incompatibility, or poor adhesion. Process selection and surface preparation must account for substrate properties.

3. Coating Defects: Metallized coatings are susceptible to various defects such as pinholes, nodules, pores, cracks, or delamination. Careful process control and inspection are necessary to minimize coating defects that could impact performance.

4. Environmental Concerns: Some metallization processes use toxic chemicals, generate hazardous waste, or have high energy consumption. Compliance with environmental regulations and implementation of pollution prevention measures are important considerations.

5. Mechanical Properties: While metallized coatings can enhance surface properties, the bulk mechanical properties of the coated part are still determined by the substrate material. Metallization may negatively affect mechanical properties such as fatigue strength or impact resistance in some cases.

Future Trends in Metallization

Metallization technology continues to advance, driven by demands for improved performance, sustainability, and cost-effectiveness. Some key trends shaping the future of metallization include:

1. Nano-Structured Coatings: Nanocrystalline and nano-composite metallized coatings offer enhanced properties such as high strength, toughness, and self-healing capabilities. Nano-structured coatings are being developed for applications such as ultra-hard tool coatings, anti-corrosion barriers, and superhydrophobic surfaces.

2. Environmentally Friendly Processes: There is a growing emphasis on developing metallization processes with reduced environmental impact. Examples include replacing toxic chemistries, minimizing waste generation, and improving energy efficiency. Techniques such as supercritical fluid deposition and ionic liquid plating are being explored as eco-friendly alternatives.

3. Additive Manufacturing Integration: Metallization is being combined with additive manufacturing (3D printing) to create functionally graded materials and complex geometries. Techniques such as directed energy deposition and binder jetting allow selective metallization of 3D printed parts for enhanced performance and aesthetics.

4. Smart Coatings: Metallized coatings are being functionalized with stimuli-responsive properties for smart and adaptive applications. Examples include self-healing coatings that autonomously repair damage, anti-icing coatings that prevent ice accretion, and color-shifting coatings for dynamic aesthetics.

5. High Entropy Alloy Coatings: High entropy alloys (HEAs) are emerging as a new class of metallization materials. HEA coatings contain five or more principal elements in near-equiatomic ratios, resulting in unique properties such as high strength, thermal stability, and corrosion resistance. HEA coatings are being developed for extreme environment applications in aerospace, energy, and chemical processing industries.

Frequently Asked Questions

What is the difference between PVD and CVD?

PVD (Physical Vapor Deposition) and CVD (Chemical Vapor Deposition) are both vapor phase metallization methods, but they differ in how the coating material is vaporized and deposited. PVD uses physical processes such as evaporation or sputtering to produce a vapor of coating material that condenses on the substrate. CVD uses chemical reactions of volatile precursors at the substrate surface to deposit the coating. PVD typically operates at lower temperatures and pressures compared to CVD.

Can non-conductive materials be metallized?

Yes, non-conductive materials such as plastics, ceramics, and composites can be metallized using methods such as electroless plating, sputtering, or thermal spray. The non-conductive surface is often pre-treated to improve adhesion before metallization. For electroplating, a conductive seed layer is first applied using electroless plating or PVD to enable subsequent electrodeposition.

How is coating thickness measured?

Coating thickness can be measured using various methods depending on the coating material and substrate. Common techniques include:

• Magnetic gauges that measure the magnetic attraction between a probe and the ferromagnetic substrate
• Eddy current gauges that measure changes in electromagnetic impedance due to coating thickness
• X-ray fluorescence (XRF) that measures characteristic X-rays emitted from the coating material
• Cross-sectional microscopy that directly measures thickness from a cut and polished sample

What is the typical thickness of metallized coatings?

The thickness of metallized coatings can range from nanometers to millimeters depending on the application and deposition method. Some typical thickness ranges include:

• Decorative electroplated coatings: 0.1 to 30 μm
• Hard PVD tool coatings: 1 to 10 μm
• Thermal spray coatings: 50 to 500 μm
• CVD coatings for semiconductor applications: 1 to 100 nm

How do I select the best metallization process for my application?

Selecting the optimal metallization process depends on factors such as the substrate material, desired coating properties, part geometry, production volume, and cost constraints. Key considerations include:

• Coating material compatibility with the substrate and operating environment
• Required coating thickness, uniformity, and adhesion
• Substrate geometry and size
• Process temperature tolerance of the substrate
• Production rate and scalability
• Environmental, health, and safety requirements
• Cost of equipment, materials, and operation

Consultation with metallization experts and testing of different processes is often necessary to determine the best approach for a specific application.
