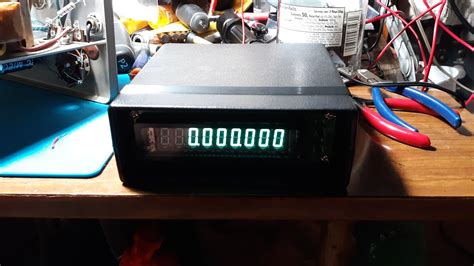

What is a Frequency Counter?
A frequency counter is an electronic instrument that measures the frequency of an input signal. It determines the number of cycles of the input waveform that occur in a given time interval and displays the frequency in Hertz (Hz).
Frequency counters are widely used in various applications such as:
- Testing and calibrating electronic equipment
- Measuring the frequency of oscillators and clock signals
- Analyzing the spectral content of signals
- Monitoring the stability of frequency sources
How Does a Frequency Counter Work?
The basic principle behind a frequency counter is quite simple. It counts the number of cycles of the input signal over a precise time period, known as the gate time. The frequency is then calculated by dividing the cycle count by the gate time.
Here’s a step-by-step explanation of how a typical frequency counter works:
-
Signal Conditioning: The input signal is first conditioned to ensure it is compatible with the counter circuitry. This may involve amplification, attenuation, or level shifting to bring the signal within the acceptable range of the counter.
-
Trigger Level and Slope: The counter has adjustable trigger level and slope controls. The trigger level determines the voltage threshold at which the counter detects the signal transitions. The slope control selects whether the counter triggers on the rising or falling edge of the signal.
-
Gate Time Generation: A precise gate time is generated using a stable reference oscillator, typically a crystal oscillator. The gate time determines the measurement resolution and accuracy of the frequency counter.
-
Counting: During the gate time, the counter increments its count value each time the input signal crosses the trigger level in the selected direction (rising or falling edge). The count value represents the number of cycles of the input signal within the gate time.
-
Frequency Calculation: At the end of the gate time, the frequency is calculated by dividing the count value by the gate time. For example, if the counter recorded 1,000,000 cycles in a gate time of 1 second, the frequency would be 1,000,000 Hz or 1 MHz.
-
Display: The calculated frequency is then displayed on the counter’s readout, typically an LCD or LED display, in the appropriate unit of measurement (Hz, kHz, MHz, etc.).
Frequency counters often have additional features such as:
- Autoranging: The counter automatically selects the appropriate frequency range based on the input signal.
- Reciprocal counting: This technique uses the input signal to gate the reference oscillator, providing higher resolution and accuracy for low-frequency signals.
- Averaging: The counter takes multiple measurements and averages them to reduce the effect of noise and improve stability.
Frequency Counter Circuits
Now let’s dive into the details of frequency counter circuits and their key components.
Input Signal Conditioning
The input signal conditioning stage prepares the input signal for reliable counting. It typically includes the following components:
-
Input Attenuator: If the input signal amplitude exceeds the acceptable range of the counter, an attenuator is used to reduce the signal level. Attenuators are usually resistive dividers or switched attenuators.
-
Input Amplifier: If the input signal is too weak, an amplifier is used to boost its amplitude. The amplifier should have sufficient bandwidth to handle the frequency range of interest.
-
Level Shifter: If the input signal has a DC offset or is not centered around the counter’s trigger level, a level shifter circuit is used to adjust the signal level. This ensures reliable triggering of the counter.
-
Low-Pass Filter: In some cases, a low-pass filter is used to remove high-frequency noise or harmonics from the input signal. This helps prevent false triggering of the counter.
Here’s an example schematic of an input signal conditioning stage:
Attenuator Amplifier Level Shifter Low-Pass Filter
Input --|--|--|--|--> --|--|--|--> --|--|--|--|--> --|--|--|--|--> To Counter
R1 R2 | | |
| | |
Rf R3 C1 R4
| | |
- - -
Trigger Level and Slope Control
The trigger level and slope control circuitry allows the user to set the voltage threshold and edge polarity for triggering the counter. It typically consists of the following components:
-
Comparator: A comparator compares the input signal with the trigger level voltage. When the input signal crosses the trigger level in the selected direction (rising or falling edge), the comparator output changes state.
-
Trigger Level Adjustment: A potentiometer or a digital-to-analog converter (DAC) is used to set the trigger level voltage. The trigger level is usually adjustable over the full range of the input signal.
-
Slope Selection: A switch or a digital control signal is used to select whether the counter triggers on the rising or falling edge of the input signal.
Here’s an example schematic of a trigger level and slope control circuit:
Vcc
|
R1
|
|
|
POT
|
Input --|--|--|--|--> --|--|--|--|--> --|--|--|--> To Counter
| Comparator
R2
|
-
|
GND
Gate Time Generation
The gate time generation circuitry produces a precise time window during which the counter measures the input signal. It typically includes the following components:
-
Reference Oscillator: A stable reference oscillator, such as a crystal oscillator, is used to generate a precise clock signal. The stability and accuracy of the reference oscillator directly impact the accuracy of the frequency measurement.
-
Gate Time Selector: A switch or a digital control signal is used to select the desired gate time. Common gate times include 1 second, 100 milliseconds, and 10 milliseconds.
-
Frequency Divider: A frequency divider circuit is used to divide the reference oscillator frequency by a factor corresponding to the selected gate time. For example, if the reference oscillator frequency is 10 MHz and a gate time of 1 second is selected, the frequency divider would divide the oscillator frequency by 10,000,000.
Here’s an example schematic of a gate time generation circuit:
Crystal
Osc.
|
|
|
R1
|
|
|
|
|-|-|
| & |
|-|-|
|
|
|
Gate Time --|--|--|--|--> Frequency Divider
Select |
|
|
|
|
|
|
To Counter
Counting and Display
The counting and display circuitry performs the actual counting of the input signal cycles and displays the calculated frequency. It typically consists of the following components:
-
Counter IC: A high-speed counter IC, such as the 74HC590 or the 74HC4040, is used to count the input signal cycles. The counter IC increments its count value on each trigger event (rising or falling edge) of the input signal.
-
Latch: A latch is used to store the count value at the end of each gate time. The latch captures the count value and holds it stable for further processing.
-
Microcontroller or Frequency Calculation Logic: A microcontroller or dedicated frequency calculation logic is used to calculate the frequency based on the count value and the gate time. The calculation typically involves dividing the count value by the gate time.
-
Display: The calculated frequency is displayed on an LCD, LED, or other display device. The display should have sufficient resolution and update rate to show the frequency accurately.
Here’s an example schematic of a counting and display circuit:
Counter IC
|
|
|
Input --|--|--|--|--> --|--|--|--|--> Latch --|--|--|--|--> Microcontroller
Trigger | |
| |
| |
| |
| |
| |
To Display To Display
Frequency Counter Applications
Frequency counters find applications in various fields, including:
-
Electronics Testing and Calibration: Frequency counters are used to test and calibrate electronic equipment such as oscillators, signal generators, and communication systems. They ensure that the equipment is operating at the correct frequency and within the specified tolerance.
-
Telecommunications: In telecommunications, frequency counters are used to measure the frequency of carrier signals, monitor channel frequencies, and troubleshoot communication systems.
-
Audio and Acoustics: Frequency counters are used in audio and acoustic measurements to analyze the frequency content of sound waves. They are used in the design and testing of audio equipment, speakers, and microphones.
-
Automotive: In the automotive industry, frequency counters are used to measure the frequency of various sensors, such as wheel speed sensors and engine speed sensors. They help in diagnosing and troubleshooting vehicle systems.
-
Scientific Research: Frequency counters are used in scientific research to measure the frequency of various physical phenomena, such as the frequency of light, the rotation speed of objects, and the oscillation frequency of mechanical systems.
Frequency Counter Specifications
When selecting a frequency counter, several key specifications should be considered:
-
Frequency Range: The frequency range specifies the minimum and maximum frequencies that the counter can measure accurately. It is important to choose a counter with a frequency range that covers the frequencies of interest.
-
Resolution: The resolution of a frequency counter determines the smallest frequency difference it can detect. Higher resolution allows for more precise measurements.
-
Accuracy: Accuracy specifies how close the measured frequency is to the true frequency of the input signal. It is usually expressed as a percentage of the reading or as an absolute frequency error.
-
Gate Time: The gate time determines the measurement resolution and the update rate of the display. Longer gate times provide higher resolution but slower update rates.
-
Input Characteristics: The input characteristics, such as the input impedance, maximum input voltage, and trigger level range, should be considered to ensure compatibility with the input signal.
-
Display: The display should have sufficient digits and update rate to show the measured frequency accurately. Some counters also offer additional display features such as bar graphs, trend indicators, and data logging.
Frequency Counter Selection Guide
When selecting a frequency counter, consider the following factors:
-
Frequency Range: Determine the frequency range of the signals you need to measure and choose a counter that covers that range.
-
Resolution and Accuracy: Consider the required resolution and accuracy for your application. Higher resolution and accuracy are needed for precise measurements.
-
Input Characteristics: Ensure that the counter’s input characteristics, such as input impedance and maximum input voltage, are compatible with your input signals.
-
Gate Time: Select a gate time that provides the desired measurement resolution and update rate. Longer gate times offer higher resolution but slower update rates.
-
Display: Choose a counter with a clear and readable display that shows the measured frequency with sufficient digits and update rate.
-
Connectivity: If you need to interface the counter with other instruments or computers, look for counters with appropriate connectivity options such as USB, GPIB, or Ethernet.
-
Portability: If you need to use the counter in the field or in different locations, consider a portable or handheld model with battery operation.
-
Budget: Frequency counters are available in a wide price range. Determine your budget and choose a counter that meets your requirements within that budget.
Here’s a comparison table of different types of frequency counters:
| Type | Frequency Range | Resolution | Accuracy | Input Impedance | Display | Connectivity | Portability |
|---|---|---|---|---|---|---|---|
| Benchtop | Wide | High | High | High | Large, Clear | Extensive | Limited |
| Handheld | Moderate | Moderate | Moderate | Moderate | Small | Limited | High |
| Modular | Wide | High | High | High | None | Extensive | Limited |
| Microcontroller-based | Limited | Moderate | Moderate | Moderate | Customizable | Customizable | High |
Frequently Asked Questions (FAQ)
-
What is the difference between frequency and period?
Frequency is the number of cycles of a signal per unit time, typically measured in Hertz (Hz). Period is the time taken for one complete cycle of the signal, measured in seconds. Frequency and period are reciprocals of each other. -
Can a frequency counter measure the frequency of non-sinusoidal signals?
Yes, a frequency counter can measure the frequency of any periodic signal, including square waves, triangular waves, and pulse trains. However, for accurate measurements, the input signal should have a well-defined trigger level and a consistent waveform. -
What is the difference between a frequency counter and an oscilloscope?
A frequency counter is a specialized instrument that measures the frequency of a signal. An oscilloscope, on the other hand, is a general-purpose instrument that displays the waveform of a signal in the time domain. While an oscilloscope can be used to measure frequency, a dedicated frequency counter provides higher accuracy and resolution. -
How do I connect a frequency counter to a circuit?
To connect a frequency counter to a circuit, follow these steps: - Identify the input signal that you want to measure.
- Connect the input signal to the counter’s input terminal using a suitable probe or cable.
- Ensure that the input signal level is within the acceptable range of the counter.
- Set the trigger level and slope controls to properly trigger on the input signal.
- Select the appropriate gate time for the desired measurement resolution.
-
Read the measured frequency from the counter’s display.
-
What is the maximum frequency that a frequency counter can measure?
The maximum frequency that a frequency counter can measure depends on its specifications. High-end frequency counters can measure frequencies up to several gigahertz (GHz), while lower-end models may be limited to a few hundred megahertz (MHz). It is important to choose a counter with a frequency range that covers the frequencies you need to measure.
Conclusion
Frequency counters are essential tools for measuring and analyzing the frequency of signals in various applications. By understanding the working principles, key components, and specifications of frequency counters, you can select the right counter for your needs and perform accurate frequency measurements.
When designing a frequency counter circuit, pay attention to the input signal conditioning, trigger level and slope control, gate time generation, and counting and display stages. Each stage plays a crucial role in ensuring reliable and precise frequency measurements.
Consider factors such as frequency range, resolution, accuracy, input characteristics, and display when choosing a frequency counter. Benchtop, handheld, modular, and microcontroller-based counters offer different features and trade-offs to suit different applications and budgets.
By following the guidelines and best practices outlined in this article, you can effectively use frequency counters to measure and analyze frequencies in various fields, including electronics testing, telecommunications, audio and acoustics, automotive, and scientific research.
