Pros and Cons of 7 PCB Surface Finish Types – Complete Guide

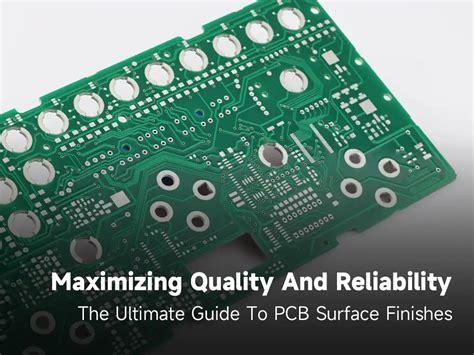

What are PCB Surface Finishes?

PCB Surface Finishes are protective coatings applied to the exposed copper surfaces of a PCB, including pads, vias, and through-holes. These finishes serve several purposes, such as:

Protecting the copper from oxidation and corrosion
Enhancing solderability and assembly process
Improving electrical conductivity and signal integrity
Providing a smooth, level surface for component placement

Request RF PCB Manufacturing & Assembly Quote Now

Types of PCB Surface Finishes

There are several types of PCB surface finishes, each with its own set of advantages and disadvantages. The most common surface finishes include:

Hot Air Solder Leveling (HASL)
Lead-Free Hot Air Solder Leveling (LF-HASL)
Electroless Nickel Immersion Gold (ENIG)
Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG)
Immersion Silver (IAg)
Immersion Tin (ISn)
Organic Solderability Preservative (OSP)

1. Hot Air Solder Leveling (HASL)

HASL is a traditional and widely used surface finish that involves dipping the PCB into a molten solder bath and then using hot air to level the surface.

Pros of HASL:

Cost-effective and economical
Excellent solderability and wettability
Suitable for through-hole components
Provides good thermal shock resistance

Cons of HASL:

Uneven surface due to solder dipping process
Potential for solder bridges and shorts
Not suitable for fine-pitch components
Contains lead, which is restricted by RoHS regulations

2. Lead-Free Hot Air Solder Leveling (LF-HASL)

LF-HASL is similar to HASL but uses lead-free solder alloys to comply with RoHS regulations.

Pros of LF-HASL:

RoHS compliant and environmentally friendly
Good solderability and wettability
Suitable for through-hole components
Cost-effective compared to other lead-free finishes

Cons of LF-HASL:

Higher processing temperatures compared to HASL
Potential for uneven surface and solder defects
Not suitable for fine-pitch components
Limited shelf life due to copper diffusion into the solder

3. Electroless Nickel Immersion Gold (ENIG)

ENIG is a popular surface finish that consists of a layer of nickel followed by a thin layer of gold. The nickel layer provides a barrier against copper diffusion, while the gold layer offers excellent solderability and protection against oxidation.

Pros of ENIG:

Excellent solderability and wettability
Suitable for fine-pitch components and SMT Assembly
Good shelf life and storage stability
Provides a flat, even surface for component placement
RoHS compliant and lead-free

Cons of ENIG:

Higher cost compared to HASL and OSP
Potential for “black pad” defect due to improper plating process
Possibility of nickel corrosion in extreme environments
Gold can dissolve into solder, affecting joint reliability

4. Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG)

ENEPIG is an advanced surface finish that adds a layer of palladium between the nickel and gold layers. The palladium layer enhances the finish’s durability and reliability.

Pros of ENEPIG:

Excellent solderability and wettability
Suitable for fine-pitch components and SMT assembly
Provides a flat, even surface for component placement
Improved durability and reliability compared to ENIG
Resistant to “black pad” defect
RoHS compliant and lead-free

Cons of ENEPIG:

Higher cost compared to ENIG and other surface finishes
Complex and time-consuming plating process
Limited availability and longer lead times

5. Immersion Silver (IAg)

Immersion silver is a cost-effective, lead-free surface finish that provides good solderability and electrical conductivity.

Pros of IAg:

Cost-effective compared to ENIG and ENEPIG
Good solderability and wettability
Suitable for fine-pitch components and SMT assembly
Provides a flat, even surface for component placement
RoHS compliant and lead-free

Cons of IAg:

Limited shelf life due to silver tarnishing and oxidation
Potential for silver migration and dendrite growth
Not suitable for high-temperature applications
May require additional handling and packaging precautions

6. Immersion Tin (ISn)

Immersion tin is another lead-free surface finish that offers good solderability and is often used as a cheaper alternative to ENIG.

Pros of ISn:

Cost-effective compared to ENIG and ENEPIG
Good solderability and wettability
Suitable for fine-pitch components and SMT assembly
Provides a flat, even surface for component placement
RoHS compliant and lead-free

Cons of ISn:

Limited shelf life due to tin whisker growth
Potential for tin pest formation at low temperatures
Not suitable for high-temperature applications
May require additional handling and packaging precautions

7. Organic Solderability Preservative (OSP)

OSP is a thin, organic coating that preserves the solderability of the copper surface without adding significant thickness.

Pros of OSP:

Cost-effective and economical
Thin and flat surface, suitable for fine-pitch components
Good solderability and wettability
RoHS compliant and lead-free
Easily removable with solder during assembly

Cons of OSP:

Limited shelf life due to degradation of the organic coating
Potential for poor wetting and solderability if not properly applied
Not suitable for multiple reflow cycles or rework
May require special handling and storage conditions

Comparison Table of PCB Surface Finishes

Surface Finish	Cost	Shelf Life	Solderability	Fine-Pitch Suitability	RoHS Compliance
HASL	Low	Moderate	Excellent	Poor	No
LF-HASL	Low	Limited	Good	Poor	Yes
ENIG	High	Excellent	Excellent	Excellent	Yes
ENEPIG	High	Excellent	Excellent	Excellent	Yes
IAg	Moderate	Limited	Good	Good	Yes
ISn	Moderate	Limited	Good	Good	Yes
OSP	Low	Limited	Good	Excellent	Yes

Frequently Asked Questions (FAQ)

Q: Which PCB surface finish is the most cost-effective?
A: HASL and OSP are the most cost-effective surface finishes, followed by LF-HASL, IAg, and ISn. ENIG and ENEPIG are relatively more expensive due to the use of gold in the plating process.
Q: What is the best surface finish for fine-pitch components?
A: ENIG, ENEPIG, and OSP are the best surface finishes for fine-pitch components and SMT assembly. They provide a flat, even surface that allows for precise component placement and good solderability.
Q: Which surface finishes are RoHS compliant?
A: LF-HASL, ENIG, ENEPIG, IAg, ISn, and OSP are all RoHS compliant and lead-free. HASL, which contains lead, is not RoHS compliant.
Q: What is the shelf life of different PCB surface finishes?
A: ENIG and ENEPIG have the longest shelf life, followed by HASL. LF-HASL, IAg, ISn, and OSP have limited shelf life due to various factors such as copper diffusion, tarnishing, oxidation, and degradation of the organic coating.
Q: How do I choose the right surface finish for my PCB?
A: When selecting a surface finish, consider factors such as cost, shelf life, solderability, fine-pitch suitability, and RoHS compliance. Evaluate your specific application requirements, budget, and manufacturing capabilities to determine the best surface finish for your project.

Conclusion

Choosing the right PCB surface finish is crucial for ensuring the reliability, solderability, and performance of your printed circuit board. Each surface finish has its own set of advantages and disadvantages, and the best choice depends on your specific application requirements, budget, and manufacturing capabilities.

By understanding the pros and cons of each surface finish type, you can make an informed decision that balances cost, shelf life, solderability, and compliance with industry standards. Whether you opt for the cost-effective HASL, the lead-free LF-HASL, the high-performance ENIG or ENEPIG, or the organic OSP, selecting the appropriate surface finish will contribute to the success of your PCB project.
