PCB Surface Finish Lead-Free HASL vs ENIG

RF & Microwave - 12 April 2024 - 4:13 am

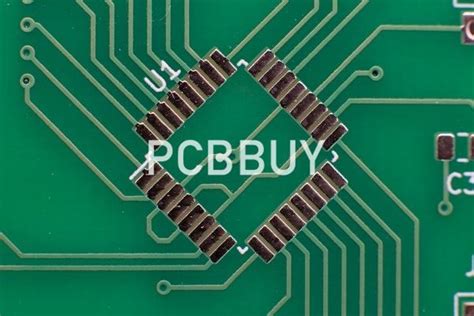

Introduction to PCB Surface Finishes

Printed Circuit Boards (PCBs) are essential components in modern electronics, providing a platform for connecting and supporting various electronic components. The surface finish of a PCB plays a crucial role in ensuring reliable soldering, protection against corrosion, and enhanced electrical performance. Among the various surface finish options available, two popular choices are Lead-Free Hot Air Solder Leveling (HASL) and Electroless Nickel Immersion Gold (ENIG). In this article, we will delve into the characteristics, advantages, and disadvantages of these two surface finishes to help you make an informed decision for your PCB projects.

Request RF PCB Manufacturing & Assembly Quote Now

What is Lead-Free HASL?

Lead-Free Hot Air Solder Leveling (HASL) is a surface finish process that involves dipping the PCB into a molten solder bath, typically consisting of a tin-silver-copper alloy (Sn-Ag-Cu or SAC). The excess solder is then blown off using hot air knives, leaving a thin, uniform layer of solder on the exposed copper pads and Through-Holes. Lead-Free HASL has gained popularity as an alternative to the traditional leaded HASL process, which has been phased out due to environmental and health concerns associated with lead.

Advantages of Lead-Free HASL

Cost-effective: Lead-Free HASL is one of the most economical surface finish options available, making it suitable for budget-conscious projects.
Excellent solderability: The solder coating provided by Lead-Free HASL ensures good wettability and solderability, facilitating reliable solder joints during the assembly process.
Compatibility with various soldering methods: Lead-Free HASL is compatible with different soldering techniques, including wave soldering, Selective Soldering, and hand soldering.
Durability: The solder coating offers protection against oxidation and corrosion, enhancing the durability of the PCB.

Disadvantages of Lead-Free HASL

Uneven surface: The hot air leveling process can result in an uneven surface, with variations in solder thickness across the PCB. This unevenness may pose challenges for fine-pitch components and high-density designs.
Thermal shock: The high temperature of the molten solder bath can cause thermal shock to the PCB, potentially leading to warpage or damage to sensitive components.
Solder bridging: The excess solder on the surface may cause bridging between closely spaced pads, requiring additional inspection and rework.
Limited shelf life: The exposed solder surface can oxidize over time, affecting solderability and requiring proper storage and handling to maintain its quality.

What is ENIG?

Electroless Nickel Immersion Gold (ENIG) is a two-layer surface finish that consists of a thin layer of gold over a nickel underlay. The process involves plating the exposed copper pads and through-holes with a layer of nickel using an electroless plating method, followed by a thin layer of immersion gold. The nickel layer provides a barrier against copper diffusion, while the gold layer offers excellent solderability and protection against oxidation.

Advantages of ENIG

Flat and uniform surface: ENIG provides a flat and uniform surface finish, making it suitable for fine-pitch components and high-density designs.
Excellent solderability: The gold layer ensures excellent wettability and solderability, resulting in reliable solder joints.
Extended shelf life: The gold layer protects the underlying nickel and copper from oxidation, providing a longer shelf life compared to Lead-Free HASL.
Compatibility with various assembly processes: ENIG is compatible with a wide range of assembly processes, including surface mount technology (SMT), wave soldering, and pin-through-hole (PTH) assembly.
Wire bonding capability: The gold layer of ENIG is suitable for wire bonding applications, making it a preferred choice for certain packaging technologies.

Disadvantages of ENIG

Higher cost: ENIG is generally more expensive than Lead-Free HASL due to the use of gold and the additional processing steps involved.
Black pad phenomenon: In some cases, the nickel layer may become excessively thick or poorly adhered to the copper, leading to a condition known as “black pad.” This can cause solderability issues and reduced reliability.
Gold embrittlement: Excessive gold dissolution during soldering can lead to embrittlement of the solder joint, potentially affecting its mechanical strength and reliability.
Compatibility with certain solder alloys: Some lead-free solder alloys, particularly those with high tin content, may exhibit reduced solderability on ENIG surfaces.

Comparison Table: Lead-Free HASL vs ENIG

Characteristic	Lead-Free HASL	ENIG
Surface Finish	Solder (Sn-Ag-Cu)	Electroless Nickel / Immersion Gold
Appearance	Matte, uneven surface	Flat, uniform surface
Solderability	Good	Excellent
Shelf Life	Limited	Extended
Thermal Shock	Possible	Minimal
Fine-Pitch Compatibility	Challenging	Suitable
Cost	Low	High
Assembly Compatibility	Wave soldering, selective soldering, hand soldering	SMT, wave soldering, PTH assembly, wire bonding
Potential Issues	Solder bridging, oxidation	Black pad, gold embrittlement

Choosing Between Lead-Free HASL and ENIG

When deciding between Lead-Free HASL and ENIG for your PCB project, consider the following factors:

Budget: If cost is a primary concern, Lead-Free HASL may be the more economical choice.
Design complexity: For fine-pitch components and high-density designs, ENIG offers a flatter and more uniform surface, making it a better option.
Shelf life requirements: If your PCBs need to be stored for an extended period before assembly, ENIG provides better protection against oxidation.
Assembly process: Consider the assembly processes you will be using and choose the surface finish that is most compatible with your requirements.
Reliability: Evaluate the potential issues associated with each surface finish and assess their impact on the reliability of your PCB.

FAQs

Q: Can Lead-Free HASL be used for high-density PCB Designs?
A: While Lead-Free HASL can be used for high-density designs, the uneven surface and potential for solder bridging may pose challenges. ENIG is generally considered a better choice for fine-pitch components and high-density layouts.
Q: Is ENIG suitable for all types of solder alloys?
A: ENIG is compatible with most solder alloys, but some lead-free alloys with high tin content may exhibit reduced solderability on ENIG surfaces. It’s important to consider the specific solder alloy you will be using and its compatibility with the chosen surface finish.
Q: How does the shelf life of Lead-Free HASL compare to ENIG?
A: ENIG has a longer shelf life compared to Lead-Free HASL. The gold layer in ENIG protects the underlying nickel and copper from oxidation, allowing for extended storage periods without compromising solderability. Lead-Free HASL, on the other hand, has a limited shelf life due to the exposed solder surface, which can oxidize over time.
Q: Is ENIG more expensive than Lead-Free HASL?
A: Yes, ENIG is generally more expensive than Lead-Free HASL. The higher cost is attributed to the use of gold in the plating process and the additional processing steps involved in applying the nickel and gold layers.
Q: Can both Lead-Free HASL and ENIG be used for through-hole components?
A: Yes, both Lead-Free HASL and ENIG are suitable for through-hole components. Lead-Free HASL provides a solder coating on the through-holes, while ENIG offers a uniform plating of nickel and gold. Both surface finishes can accommodate through-hole assembly processes.

Conclusion

Lead-Free HASL and ENIG are two widely used PCB surface finishes, each with its own advantages and disadvantages. Lead-Free HASL offers a cost-effective solution with good solderability, while ENIG provides a flat and uniform surface with excellent solderability and extended shelf life. When choosing between these two options, consider factors such as budget, design complexity, shelf life requirements, assembly processes, and reliability.

By understanding the characteristics and trade-offs of Lead-Free HASL and ENIG, you can make an informed decision that best suits your PCB project requirements. Whether you prioritize cost savings, fine-pitch compatibility, or long-term storage, selecting the appropriate surface finish is crucial for ensuring the success and reliability of your electronic assemblies.
