How to Calculate the Inductance of PCB Trace

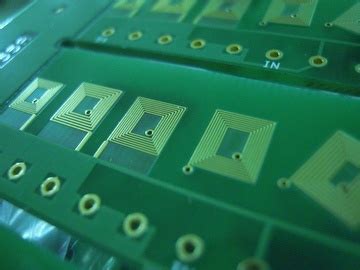

Introduction to PCB Inductance

Printed Circuit Board (PCB) inductance is a critical factor in the design and performance of high-speed electronic circuits. Inductance is the property of an electrical conductor that opposes changes in current flow, causing voltage spikes and signal distortion. In PCBs, trace inductance can significantly impact signal integrity, power distribution, and electromagnetic compatibility (EMC). Accurately calculating and managing PCB trace inductance is essential for ensuring optimal circuit performance and reliability.

In this comprehensive article, we will delve into the concept of PCB inductance, its importance in electronic design, and the various methods for calculating the inductance of PCB Traces. We will also provide practical examples, tables, and frequently asked questions to help you understand and apply these concepts in your own PCB designs.

Understanding PCB Trace Inductance

What is PCB Trace Inductance?

PCB trace inductance refers to the inherent inductance present in the conductive traces on a printed circuit board. Inductance is a measure of a conductor’s ability to store energy in a magnetic field when an electric current flows through it. In PCBs, trace inductance arises due to the geometry and dimensions of the traces, as well as the proximity of other conductive elements.

Factors Affecting PCB Trace Inductance

Several factors influence the inductance of PCB traces:

1. Trace length: Longer traces generally have higher inductance compared to shorter traces.
2. Trace width: Narrower traces exhibit higher inductance than wider traces.
3. Trace thickness: Thinner traces have higher inductance compared to thicker traces.
4. Trace spacing: The spacing between adjacent traces affects their mutual inductance.
5. Dielectric material: The dielectric constant of the PCB substrate influences the inductance of the traces.
6. Frequency: Inductance varies with the frequency of the signal passing through the trace.

Importance of PCB Trace Inductance

Managing PCB trace inductance is crucial for several reasons:

1. Signal integrity: Excessive trace inductance can lead to signal distortion, ringing, and reflections, compromising the quality of high-speed signals.
2. Power distribution: Inductance in power supply traces can cause voltage drops and transient spikes, affecting the stability and reliability of the power distribution network.
3. EMC: Trace inductance contributes to electromagnetic emissions and susceptibility, impacting the EMC performance of the PCB.
4. Timing and synchronization: Inductance-induced delays can affect the timing and synchronization of critical signals, leading to system malfunctions.

Calculating PCB Trace Inductance

Microstrip Trace Inductance

Microstrip traces are commonly used in PCB designs, where the trace is separated from a ground plane by a dielectric layer. The inductance of a microstrip trace can be calculated using the following formula:

L = 0.2 × l × [ln(2l / (w + t)) + 0.5 + 0.2235 × (w + t) / l] (nH)

Where:
– L is the inductance in nanohenries (nH)
– l is the trace length in inches
– w is the trace width in inches
– t is the trace thickness in inches

Stripline Trace Inductance

Stripline traces are embedded between two ground planes, offering better control over impedance and reduced electromagnetic interference (EMI). The inductance of a stripline trace can be calculated using the following formula:

L = 0.2 × l × [ln(4h / (0.67 × (w + t))) + 0.5] (nH)

Where:
– L is the inductance in nanohenries (nH)
– l is the trace length in inches
– w is the trace width in inches
– t is the trace thickness in inches
– h is the distance between the trace and the ground planes in inches

Coplanar Waveguide Trace Inductance

Coplanar waveguide (CPW) traces consist of a signal trace with ground planes on either side, all on the same layer. The inductance of a CPW trace can be approximated using the following formula:

L = 0.2 × l × [ln(2s / (w + 2g)) + 0.5] (nH)

Where:
– L is the inductance in nanohenries (nH)
– l is the trace length in inches
– w is the trace width in inches
– s is the spacing between the trace and the ground planes in inches
– g is the width of the ground planes in inches

Practical Examples and Tables

To illustrate the calculation of PCB trace inductance, let’s consider a few practical examples.

Example 1: Microstrip Trace Inductance

Consider a microstrip trace with the following parameters:
– Trace length (l) = 2 inches
– Trace width (w) = 0.01 inches
– Trace thickness (t) = 0.002 inches

Using the microstrip trace inductance formula:

L = 0.2 × 2 × [ln(2 × 2 / (0.01 + 0.002)) + 0.5 + 0.2235 × (0.01 + 0.002) / 2]
= 0.4 × [ln(333.33) + 0.5 + 0.2235 × 0.006]
= 0.4 × [5.81 + 0.5 + 0.00134]
= 2.52 nH

The inductance of the microstrip trace in this example is approximately 2.52 nH.

Example 2: Stripline Trace Inductance

Consider a stripline trace with the following parameters:
– Trace length (l) = 3 inches
– Trace width (w) = 0.008 inches
– Trace thickness (t) = 0.002 inches
– Distance between trace and ground planes (h) = 0.01 inches

Using the stripline trace inductance formula:

L = 0.2 × 3 × [ln(4 × 0.01 / (0.67 × (0.008 + 0.002))) + 0.5]
= 0.6 × [ln(4) + 0.5]
= 0.6 × [1.39 + 0.5]
= 1.13 nH

The inductance of the stripline trace in this example is approximately 1.13 nH.

Inductance Comparison Table

To compare the inductance of different trace geometries and dimensions, we can create a table:

Trace Type	Length (in)	Width (in)	Thickness (in)	Spacing (in)	Ground Plane Width (in)	Inductance (nH)
Microstrip	2	0.01	0.002	–	–	2.52
Stripline	3	0.008	0.002	0.01	–	1.13
CPW	1.5	0.012	–	0.006	0.02	1.68

This table allows for a quick comparison of the inductance values for different trace configurations, helping designers choose the most suitable geometry for their specific requirements.

Frequently Asked Questions (FAQ)

1. Q: What is the impact of trace inductance on signal integrity?
   A: Trace inductance can cause signal distortion, ringing, and reflections, especially in high-speed circuits. As the signal frequency increases, the inductive reactance of the trace becomes more significant, leading to voltage drops and signal degradation. To maintain signal integrity, it is essential to minimize trace inductance through proper design techniques, such as reducing trace length, increasing trace width, and using appropriate termination and impedance matching methods.

2. Q: How does trace spacing affect inductance?
   A: Trace spacing plays a role in determining the mutual inductance between adjacent traces. When traces are placed close to each other, their magnetic fields interact, resulting in increased mutual inductance. This can lead to crosstalk and signal coupling between the traces. To minimize mutual inductance, it is recommended to increase the spacing between traces, especially for high-speed signals or sensitive analog circuits. Additionally, using ground planes and proper shielding techniques can help reduce the impact of mutual inductance.

3. Q: What is the relationship between trace inductance and frequency?
   A: Trace inductance has a frequency-dependent behavior. As the frequency of the signal increases, the inductive reactance (XL = 2πfL) of the trace also increases. This means that at higher frequencies, the impact of trace inductance becomes more pronounced, leading to greater signal distortion and losses. It is crucial to consider the operating frequency range of the circuit when designing PCB traces and to ensure that the trace inductance is within acceptable limits to maintain signal integrity.

4. Q: How can I reduce PCB trace inductance in my designs?
   A: There are several strategies to reduce PCB trace inductance:

5. Keep traces as short as possible, especially for high-speed signals.
6. Increase trace width to reduce inductance per unit length.
7. Use thicker traces to minimize inductance.
8. Increase the spacing between traces to reduce mutual inductance.
9. Use ground planes and proper grounding techniques to provide a low-impedance return path.
10. Consider using stripline or coplanar waveguide traces for better control over impedance and reduced EMI.
11. Optimize the PCB Stack-Up and layer arrangement to minimize inductance.

12. Employ impedance matching and termination techniques to reduce reflections and ringing.

13. Q: What are the limitations of the inductance calculation formulas provided in this article?
    A: The inductance calculation formulas presented in this article provide approximate values based on simplified geometric models. They assume ideal conditions and do not account for all the complexities of real-world PCB designs. Factors such as non-uniform trace geometries, presence of vias, proximity to other components, and material properties can influence the actual inductance values. For precise inductance calculations, it is recommended to use specialized PCB design software that employs more advanced electromagnetic simulation techniques, such as finite element analysis (FEA) or method of moments (MoM).

Conclusion

Calculating and managing PCB trace inductance is a critical aspect of high-speed electronic design. By understanding the factors that influence trace inductance and applying appropriate calculation methods, designers can optimize their PCB Layouts for improved signal integrity, power distribution, and EMC performance. The formulas and examples provided in this article serve as a starting point for estimating trace inductance, but it is essential to consider the specific requirements and constraints of each design.

As PCB technologies continue to advance and signal frequencies push the limits, the importance of accurate inductance modeling and simulation becomes even more crucial. Designers should stay updated with the latest tools, techniques, and best practices for managing PCB trace inductance to ensure the reliability and performance of their electronic systems.
