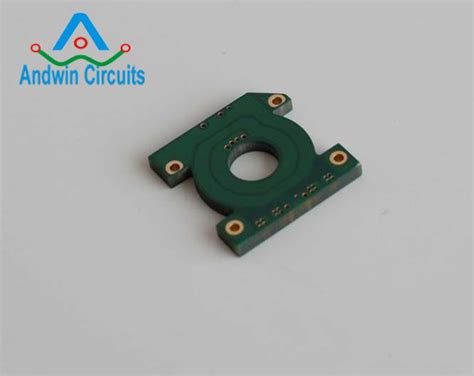

Introduction to Heavy Copper PCB
Heavy copper PCB, also known as Thick Copper PCB or high current PCB, is a type of printed circuit board that utilizes thicker copper traces than standard PCBs. These boards are designed to handle higher currents and power loads, making them ideal for applications that require increased power handling capabilities, such as power electronics, automotive systems, and renewable energy inverters.
Key Features of Heavy Copper PCB
- Thicker copper traces (typically 3 oz or more)
- Improved current carrying capacity
- Enhanced thermal management
- Increased mechanical strength and durability
Advantages of Using Heavy Copper PCB
1. Higher Current Carrying Capacity
One of the primary advantages of using heavy Copper PCBs is their ability to handle higher currents compared to standard PCBs. The thicker copper traces allow for increased cross-sectional area, which reduces resistance and enables the board to carry more current without overheating or experiencing voltage drops.
| Copper Thickness | Current Carrying Capacity |
|---|---|
| 1 oz (35 μm) | 1 A per trace |
| 2 oz (70 μm) | 2 A per trace |
| 3 oz (105 μm) | 3 A per trace |
| 4 oz (140 μm) | 4 A per trace |
2. Improved Thermal Management
Heavy copper PCBs offer better thermal management than standard PCBs due to their increased copper thickness. The thicker copper traces act as heat sinks, efficiently dissipating heat away from components and preventing thermal damage. This is particularly important in high-power applications where components generate significant heat.
3. Enhanced Mechanical Strength and Durability
The increased copper thickness in heavy copper PCBs also contributes to their enhanced mechanical strength and durability. These boards are less susceptible to warping, twisting, and other mechanical deformations, making them more reliable in harsh environments. The thicker copper traces also provide better resistance to wear and tear, increasing the overall lifespan of the PCB.
Applications of Heavy Copper PCB
1. Power Electronics
Heavy copper PCBs are widely used in power electronics applications, such as power supplies, inverters, and motor drives. These applications require high current handling capabilities and efficient heat dissipation, making heavy copper PCBs an ideal choice.
2. Automotive Systems
In the automotive industry, heavy copper PCBs are used in various systems, including engine control units (ECUs), power distribution modules, and battery management systems. The increased power handling and thermal management capabilities of these boards ensure reliable operation in the harsh automotive environment.
3. Renewable Energy Systems
Renewable energy systems, such as solar inverters and wind turbine controllers, rely on heavy copper PCBs to handle the high currents generated by these systems. The improved current carrying capacity and thermal management of heavy copper PCBs ensure efficient and reliable operation of these systems.
Design Considerations for Heavy Copper PCB
1. Copper Thickness Selection
When designing a heavy copper PCB, it is essential to select the appropriate copper thickness based on the specific application requirements. Factors to consider include the required current carrying capacity, thermal management needs, and mechanical strength.
2. Trace Width and Spacing
In addition to copper thickness, trace width and spacing also play a crucial role in the performance of heavy copper PCBs. Wider traces can carry more current, while adequate spacing between traces is necessary to prevent short circuits and ensure proper insulation.
3. Thermal Management Techniques
To further enhance the thermal management capabilities of heavy copper PCBs, designers can employ various techniques, such as using thermal vias, incorporating heatsinks, and optimizing component placement. These techniques help to efficiently dissipate heat and prevent thermal damage to components.
Manufacturing Process of Heavy Copper PCB
1. Copper Deposition
The manufacturing process of heavy copper PCBs begins with the deposition of a thick layer of copper onto the PCB substrate. This is typically done using electroplating or a combination of electroplating and copper foil lamination.
2. Patterning and Etching
Once the thick copper layer is deposited, the PCB undergoes patterning and etching processes to create the desired circuit pattern. This involves applying a photoresist, exposing it to light through a photomask, and then etching away the unwanted copper.
3. Finishing and Assembly
After the circuit pattern is created, the heavy copper PCB undergoes various finishing processes, such as solder mask application and surface finish deposition. Finally, the board is populated with components and undergoes final testing and inspection.
Challenges in Heavy Copper PCB Manufacturing
1. Copper Thickness Uniformity
One of the main challenges in heavy copper PCB manufacturing is maintaining uniform copper thickness across the board. Uneven Copper Distribution can lead to performance issues and reliability concerns.
2. Thermal Stress Management
The increased copper thickness in heavy copper PCBs can introduce thermal stresses during the manufacturing process. Proper thermal management techniques and process control are necessary to minimize these stresses and prevent warping or delamination.
3. Cost Considerations
Heavy copper PCBs are generally more expensive to manufacture than standard PCBs due to the increased copper usage and specialized manufacturing processes required. However, the benefits of using heavy copper PCBs often outweigh the additional cost in applications that demand high power handling and reliability.
Future Trends in Heavy Copper PCB Technology
1. Advanced Materials
Researchers and manufacturers are continuously exploring advanced materials to further enhance the performance of heavy copper PCBs. This includes the use of high-temperature substrates, advanced dielectric materials, and novel copper alloys.
2. 3D Printing Technologies
The advent of 3D printing technologies has opened up new possibilities for heavy copper PCB manufacturing. 3D printing allows for the creation of complex geometries and customized copper thicknesses, enabling designers to optimize PCB performance for specific applications.
3. Integration with Advanced Packaging Techniques
Heavy copper PCBs are increasingly being integrated with advanced packaging techniques, such as embedded die packaging and 3D packaging. This integration allows for higher power densities, improved thermal management, and reduced system size.
Frequently Asked Questions (FAQ)
1. What is the difference between heavy copper PCB and standard PCB?
Heavy copper PCBs use thicker copper traces (typically 3 oz or more) compared to standard PCBs, which usually have 1 oz or 2 oz copper traces. The increased copper thickness enables heavy copper PCBs to handle higher currents and power loads.
2. What are the main applications of heavy copper PCB?
Heavy copper PCBs are commonly used in power electronics, automotive systems, and renewable energy systems, where high current handling and efficient thermal management are critical.
3. How does the increased copper thickness improve the performance of heavy copper PCB?
The increased copper thickness in heavy copper PCBs offers several benefits, including:
– Higher current carrying capacity
– Improved thermal management
– Enhanced mechanical strength and durability
4. What are the key design considerations for heavy copper PCB?
When designing a heavy copper PCB, it is important to consider factors such as copper thickness selection, trace width and spacing, and thermal management techniques. These factors play a crucial role in optimizing the performance and reliability of the PCB.
5. What are the challenges in manufacturing heavy copper PCB?
Some of the main challenges in manufacturing heavy copper PCBs include maintaining uniform copper thickness, managing thermal stresses, and cost considerations. Proper process control and advanced manufacturing techniques are necessary to overcome these challenges and ensure high-quality heavy copper PCBs.
Conclusion
Heavy copper PCBs offer numerous benefits over standard PCBs, including higher current carrying capacity, improved thermal management, and enhanced mechanical strength. These advantages make them ideal for applications that require high power handling and reliability, such as power electronics, automotive systems, and renewable energy systems.
As technology advances, heavy copper PCBs are expected to continue evolving, with the integration of advanced materials, 3D printing technologies, and advanced packaging techniques. These developments will further enhance the performance and capabilities of heavy copper PCBs, enabling their use in an even wider range of applications.
By understanding the key features, advantages, and design considerations of heavy copper PCBs, engineers and manufacturers can effectively leverage this technology to create high-performance, reliable electronic systems that meet the demanding requirements of today’s applications.
