What Is Turnkey PCB Assembly

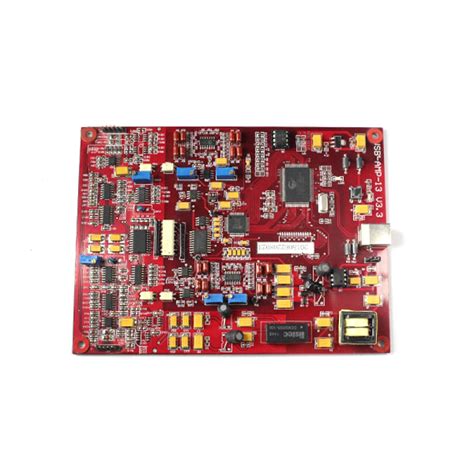

Introduction to Turnkey PCB Assembly

Turnkey PCB (Printed Circuit Board) assembly is a comprehensive manufacturing process that encompasses all stages of PCB production, from design to final assembly. This approach streamlines the entire process, making it more efficient and cost-effective for businesses that require high-quality PCBs for their electronic products. In this article, we will delve into the details of turnkey PCB Assembly, its advantages, and the various steps involved in the process.

Understanding Printed Circuit Boards (PCBs)

Before we explore turnkey PCB assembly, let’s first understand what PCBs are and their significance in electronic devices.

What are PCBs?

PCBs are the backbone of modern electronic devices. They are flat boards made of insulating materials, such as fiberglass or composite epoxy, with conductive pathways etched onto them. These pathways, known as traces, connect various electronic components, such as resistors, capacitors, and integrated circuits (ICs), to form a complete electronic circuit.

Types of PCBs

There are several types of PCBs, each designed to meet specific requirements:

1. Single-sided PCBs: These PCBs have conductive traces on only one side of the board. They are the simplest and most cost-effective type of PCB.

2. Double-sided PCBs: These PCBs have conductive traces on both sides of the board, allowing for more complex circuits and higher component density.

3. Multi-layer PCBs: These PCBs consist of multiple layers of conductive traces separated by insulating layers. They are used for highly complex circuits and offer improved signal integrity and electromagnetic interference (EMI) reduction.

4. Flexible PCBs: These PCBs are made of flexible materials, such as polyimide, allowing them to bend and conform to various shapes. They are often used in wearable devices, medical equipment, and aerospace applications.

5. Rigid-Flex PCBs: These PCBs combine the benefits of both rigid and flexible PCBs. They consist of rigid sections connected by flexible sections, enabling 3D packaging and improved reliability.

Importance of PCBs in Electronic Devices

PCBs play a crucial role in the functioning of electronic devices:

1. Miniaturization: PCBs allow for the compact packaging of electronic components, enabling the creation of smaller, more portable devices.

2. Reliability: The robust construction of PCBs ensures stable connections between components, reducing the risk of device failure.

3. Mass production: PCBs enable the standardization and automation of electronic device manufacturing, making mass production more efficient and cost-effective.

4. Signal integrity: Well-designed PCBs minimize signal interference and ensure proper signal transmission between components.

The Turnkey PCB Assembly Process

Turnkey PCB assembly involves several stages, from design to final assembly. Let’s explore each stage in detail.

PCB Design

The first stage of turnkey PCB assembly is the design phase. This involves creating a schematic diagram and a PCB layout using specialized software tools, such as Altium Designer, Eagle, or KiCad. The design process includes:

1. Schematic capture: The electronic circuit is created using standardized symbols for each component and their interconnections.

2. Component placement: The components are strategically placed on the PCB layout to optimize space, minimize signal interference, and ensure proper heat dissipation.

3. Routing: The conductive traces are routed between components, following design rules to maintain signal integrity and avoid interference.

4. Design rule check (DRC): The PCB layout is checked against a set of predefined design rules to ensure manufacturability and reliability.

5. Gerber file generation: Once the design is finalized, Gerber files are generated, which contain all the necessary information for PCB fabrication.

PCB Fabrication

The next stage is PCB fabrication, where the physical board is manufactured based on the Gerber files generated during the design phase. This stage involves several steps:

1. Material selection: The appropriate PCB substrate material is chosen based on the specific requirements of the project, such as thermal stability, dielectric constant, and cost.

2. Copper clad lamination: The substrate is laminated with a thin layer of copper on one or both sides, depending on the type of PCB.

3. Drilling: Holes are drilled through the PCB to accommodate through-hole components and provide electrical connections between layers.

4. Plating: The drilled holes are plated with a conductive material, typically copper, to ensure proper electrical connectivity.

5. Etching: The unwanted copper is removed from the PCB surface, leaving behind the desired conductive traces, pads, and planes, as defined in the Gerber files.

6. Solder mask application: A protective layer, known as a solder mask, is applied to the PCB surface to prevent accidental short circuits and protect the copper traces from oxidation.

7. Silkscreen printing: Text, logos, and component identifiers are printed on the PCB surface using a silkscreen process, making it easier to assemble and troubleshoot the board.

PCB Assembly

Once the PCB is fabricated, the next stage is PCB assembly, where the electronic components are soldered onto the board. This stage can be further divided into two sub-stages:

Surface Mount Technology (SMT) Assembly

SMT assembly involves placing and soldering surface mount devices (SMDs) onto the PCB surface. SMDs are smaller and more compact than through-hole components, allowing for higher component density and improved performance. The SMT assembly process includes:

1. Solder paste application: A precise amount of solder paste is applied to the PCB pads using a stencil or syringe.

2. Component placement: SMDs are picked and placed onto the solder paste-coated pads using an automated pick-and-place machine.

3. Reflow soldering: The PCB is heated in a reflow oven, causing the solder paste to melt and form a permanent connection between the SMDs and the PCB pads.

4. Inspection: The assembled PCB is inspected using automated optical inspection (AOI) or X-ray inspection to ensure proper component placement and soldering quality.

Through-Hole (THT) Assembly

THT assembly involves inserting the leads of through-hole components into the drilled holes on the PCB and soldering them in place. This process is typically performed after SMT assembly and includes:

1. Component insertion: Through-hole components are manually inserted into the corresponding holes on the PCB.

2. Wave soldering: The PCB is passed over a wave of molten solder, which flows into the holes and forms a connection between the component leads and the PCB.

3. Inspection: The assembled PCB is visually inspected to ensure proper component placement and soldering quality.

PCB Testing and Quality Control

After the PCB assembly is complete, the board undergoes thorough testing and quality control to ensure its functionality and reliability. This stage involves several techniques:

1. In-circuit testing (ICT): The PCB is placed in a bed-of-nails fixture, which makes contact with specific test points on the board. The fixture applies electrical signals to the board and measures the response to verify the proper functioning of individual components and circuits.

2. Functional testing: The PCB is powered on and subjected to various operational scenarios to ensure it performs as intended. This may involve using specialized test equipment or connecting the PCB to a test system that simulates real-world conditions.

3. Burn-in testing: The PCB is subjected to extended periods of operation under elevated temperatures and electrical stress to identify any potential early-life failures.

4. Visual inspection: The PCB is visually inspected for any signs of physical damage, poor soldering, or component misalignment.

5. Boundary scan testing: For complex PCBs with high component density, boundary scan testing is used to verify the interconnections between components without the need for physical access to individual pins.

Advantages of Turnkey PCB Assembly

Turnkey PCB assembly offers several advantages over traditional PCB manufacturing approaches:

1. Time-saving: By outsourcing the entire PCB assembly process to a single provider, businesses can save significant time and focus on their core competencies.

2. Cost-effective: Turnkey PCB assembly providers often have established relationships with component suppliers and can negotiate better prices, resulting in cost savings for the customer.

3. Expertise: Turnkey PCB assembly providers have specialized knowledge and experience in PCB design, fabrication, and assembly, ensuring high-quality results.

4. Scalability: Turnkey PCB assembly providers can easily scale up production to meet increasing demand, without the need for the customer to invest in additional equipment or personnel.

5. Quality assurance: Turnkey PCB assembly providers adhere to strict quality control standards, ensuring consistent and reliable PCBs.

Choosing a Turnkey PCB Assembly Provider

When selecting a turnkey PCB assembly provider, consider the following factors:

1. Experience: Look for a provider with a proven track record in PCB assembly and experience in your specific industry or application.

2. Capabilities: Ensure that the provider has the necessary equipment, expertise, and certifications to handle your PCB assembly requirements.

3. Quality control: Inquire about the provider’s quality control processes and certifications, such as ISO 9001, IPC Class 2, or IPC Class 3.

4. Communication: Choose a provider that maintains clear and open communication throughout the assembly process and provides regular updates on project progress.

5. Pricing: Compare pricing from multiple providers, but be cautious of significantly lower prices, as they may indicate compromises in quality or service.

Frequently Asked Questions (FAQ)

1. What is the minimum order quantity for turnkey PCB assembly?

Minimum order quantities vary among turnkey PCB assembly providers. Some providers may offer low minimum order quantities, while others may require higher volumes to ensure cost-effectiveness. It’s best to discuss your specific requirements with potential providers.

2. How long does the turnkey PCB assembly process typically take?

The lead time for turnkey PCB assembly depends on various factors, such as PCB complexity, component availability, and order volume. Generally, the process can take anywhere from a few days to several weeks. Discuss your timeline requirements with potential providers to ensure they can meet your needs.

3. Can turnkey PCB assembly providers source components for my project?

Yes, most turnkey PCB assembly providers offer Component sourcing as part of their services. They have established relationships with component suppliers and can often secure better prices and faster delivery times than individual customers.

4. What file formats are required for turnkey PCB assembly?

The most common file formats required for turnkey PCB assembly include:

• Gerber files (RS-274X) for PCB fabrication
• Bill of Materials (BOM) for component sourcing
• Pick and Place (PNP) files for component placement
• Assembly drawings for reference

5. How can I ensure the quality of my PCBs when using a turnkey assembly provider?

To ensure the quality of your PCBs, choose a reputable turnkey assembly provider with a proven track record and strict quality control processes. Discuss your quality requirements upfront and inquire about their testing and inspection procedures. Additionally, consider visiting the provider’s facility to assess their capabilities and quality control measures firsthand.

Conclusion

Turnkey PCB assembly is a comprehensive solution for businesses looking to streamline their PCB manufacturing process and ensure high-quality results. By outsourcing the entire assembly process to a single provider, businesses can save time, reduce costs, and leverage the expertise of specialized professionals. When choosing a turnkey PCB assembly provider, consider factors such as experience, capabilities, quality control, communication, and pricing to find the best fit for your project requirements.

As technology continues to advance and electronic devices become increasingly complex, the demand for reliable and efficient PCB assembly services will only grow. By understanding the turnkey PCB assembly process and its advantages, businesses can make informed decisions and stay competitive in the ever-evolving electronics industry.

Turnkey PCB Assembly Process	Description
PCB Design	Creating a schematic diagram and PCB layout using specialized software tools
PCB Fabrication	Manufacturing the physical board based on Gerber files generated during the design phase
PCB Assembly	Soldering electronic components onto the fabricated PCB using SMT and THT techniques
PCB Testing and Quality Control	Verifying the functionality and reliability of the assembled PCB through various testing methods
